DAS, EVGA SuperNOVA 750 G2 PSU

zumka · December 7, 2022, 3:58pm

Hi Everyone,

I’m currently in the process of building DAS server. Inspired by 20 Bay L4500 DAS w/ Linked PSUs

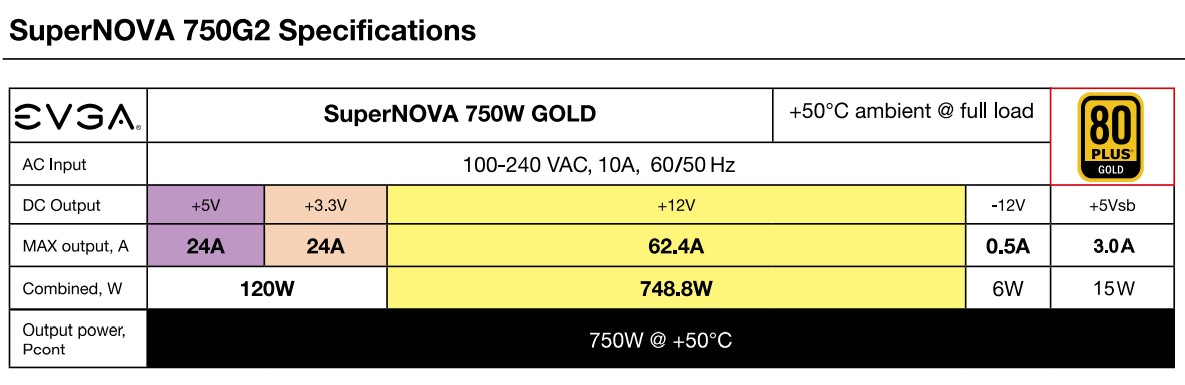

I have EVGA SuperNOVA 750 G2 PSU and 24 Seagate Constellation ES.3 SAS drives (idle 6.75W R/W 11.27W). Is this PSU going to be enough?

Add images

Thank you

JDM_WAAAT · December 7, 2022, 3:58pm

Yes, that PSU should be plenty.

I would recommend that you not put more than 6 hard drives per set of wires coming from the PSU, though.

zumka · December 7, 2022, 10:24pm

Thank you

zumka · December 7, 2022, 10:29pm

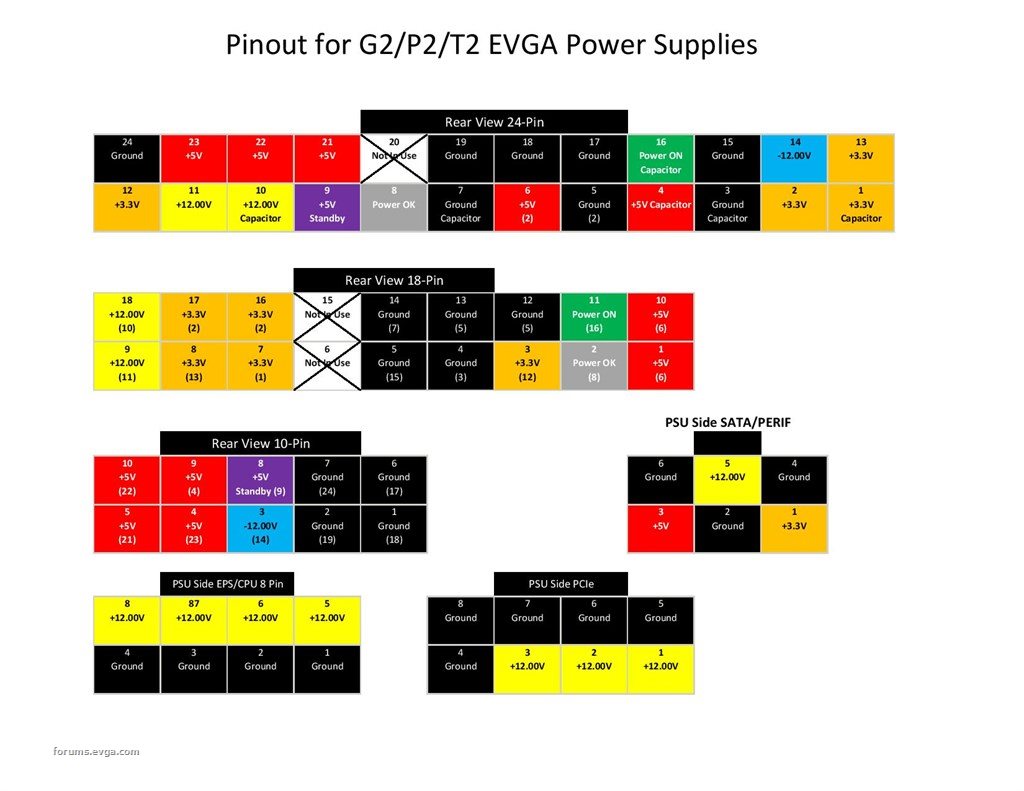

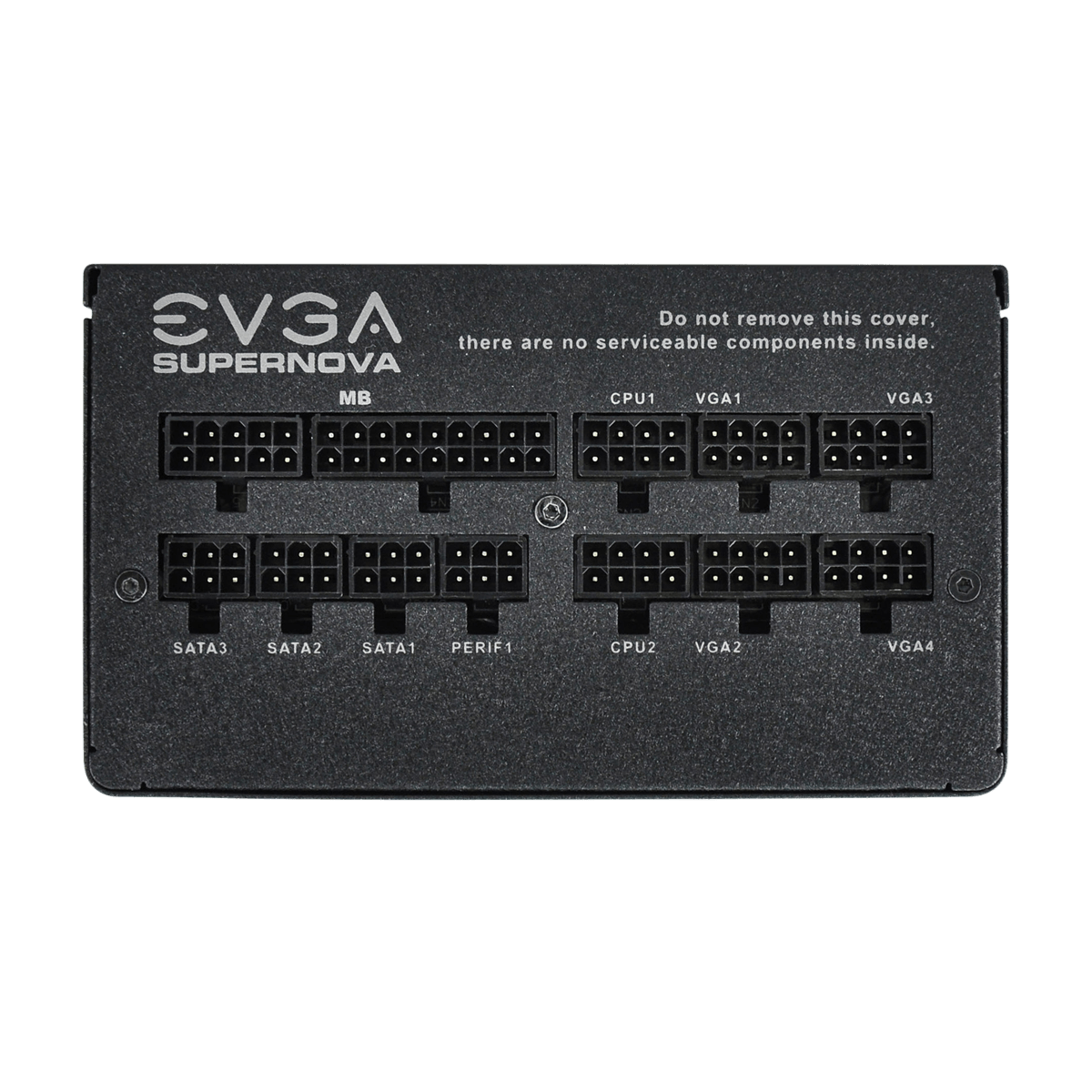

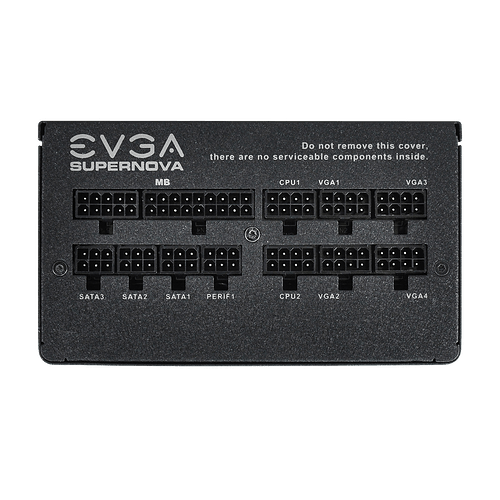

Silly question. Since I don’t have a motherboard in my DAS design,
can I use PSU 18pin connector as an additional sata lane?

JDM_WAAAT · December 8, 2022, 3:23pm

No, but you can use molex connectors with adapters, such as these:
