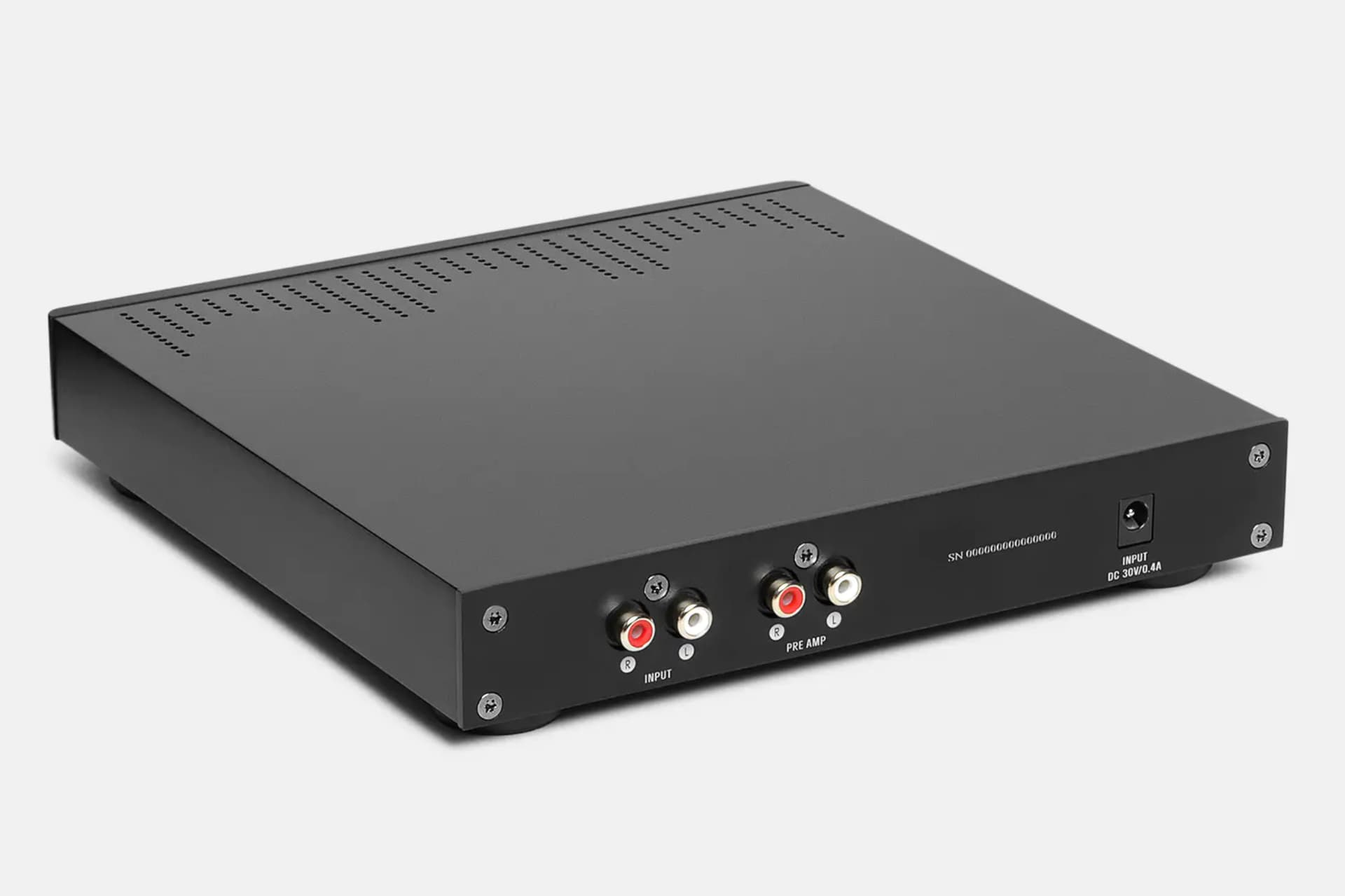

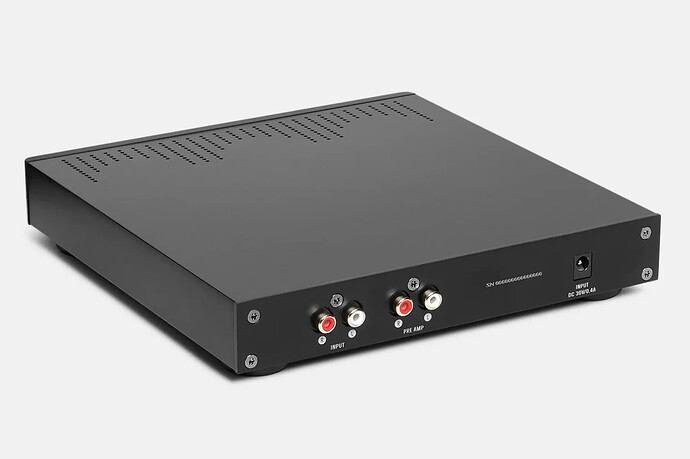

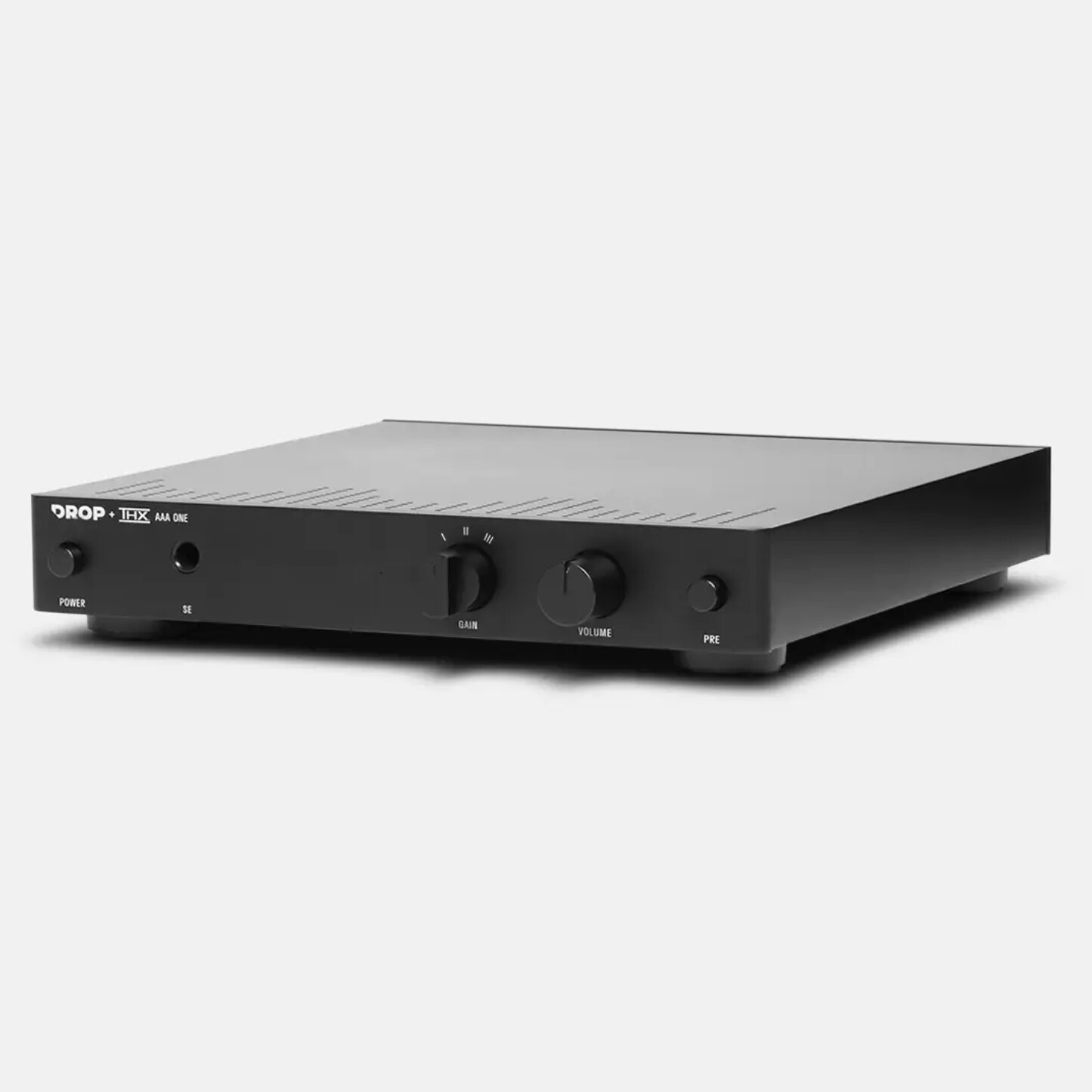

[US-CO] NEW Drop THX ONE AAA amp

Asking $150 shipped to the continental US.
Brand new, unboxed to verify functionality.
I have too many amps, this one has to go.

General

  • All parameters measured at 0 dB gain, 1 kHz, with unbalanced inputs and 300-ohm load unless otherwise noted
  • Inputs: Stereo RCA gold-plated
  • Outputs: 1/4 in (6.35 mm), TRS gold-plated Neutrik, Stereo RCA preamp gold-plated
  • Frequency response: + 0.01 dB / - 0.03 dB 20 Hz – 20 kHz
  • Input impedance: 1 kOhms
  • Crosstalk: -93 dB, 300 ohms: 0.002240%
  • Noise (A-wt): 0.95 uV, potentiometer at nil
  • SNR: 140.2 dB, 300 ohms, <10% THD
  • Gain: 0.25x , 1.0x, 4.0x (-12, 0, +12 dB), selectable via front switch
  • Chassis: High-grade CNC-milled aluminum with bead-blasted finish
  • Power supply: 30 VDC inline brick, universal input 100 – 240 VAC
  • Dimensions: 8.1 x 8.1 x 1.5 in (20.7 x 20.6 x 3.9 cm)
  • Weight: 2.6 lbs (1.3 kg)

Single-Ended Output

  • Output power: 1500 mW, 16 ohms, <1% THD (watts per channel)
  • Output power: 2700 mW, 32 ohms, <1% THD (watts per channel)
  • Output power: 280 mW, 300 ohms, <1% THD (watts per channel)
  • Output power: 140 mW, 600 ohms, <1% THD (watts per channel)
  • THD: -142 dB, 300 ohms, 1 mW: 0.000008%
  • THD: -118 dB, 300 ohms, 100 mW: 0.000126%
  • THD: -120 dB, 32 ohms, 1 mW: 0.000100%
  • THD: -130 dB, 32 ohms, 100 mW: 0.000032%
  • THD: -117 dB, 16 ohms, 1 mW: 0.000140%
  • THD: -132 dB, 16 ohms, 100 mW: 0.000025%
  • IMD: -114 dB, SMPTE 70 Hz + 7 kHz, 300 ohms, 1 V: 0.000398%
  • IMD: -131 dB, DFD 18 kHz + 19 kHz, 300 ohms, 1V: 0.000028%
  • Crosstalk: -93 dB, 300 ohms: 0.002240%
  • Noise (A-wt): 0.95 uV, potentiometer at nil
  • SNR: 140.2 dB, 300 ohms, <10% THD
  • Gain: 0.25x , 1.0x, 4.0x (-12, 0, +12 dB), selectable via front switch
  • Output impedance: < 0.1 ohms

Preamp Output

  • Output voltage: 9.0 V / +21 dBu, <1% THD, 600 ohms load
  • Output power: 140 mW, 600 ohms, <1% THD (watts per channel)
  • Output impedance: < 0.1 ohms
  • THD: -142 dB, 600 ohms, 1 mW: 0.000008%
  • THD: -118 dB, 600 ohms, 50 mW: 0.000126%
  • IMD: -114 dB, SMPTE 70 Hz + 7 kHz, 600 ohms, 1 V: 0.000398%
  • IMD: -131 dB, DFD 18 kHz + 19 kHz, 600 ohms, 1V: 0.000028%
  • Crosstalk: -110 dB, 600 ohms: 0.000300%
  • Noise (A-wt): 0.95 uV, potentiometer at nil
  • SNR: 140.2 dB, 600 ohms, <10% THD
  • Gain: 0.25x , 1.0x, 4.0x (-12, 0, +12 dB), selectable via front switch
1 Like

I suggested this model to a friend that was looking for an amp to supplement his DAC for his Beyerdynamic DT 990 (250ohm) PRO’s and he likes it.

2 Likes
