Tyan S5512 Posting Issues

I have a TYAN S5512 build that I was working on for Unraid and now it is acting quite strange an won’t post. I can’t even get into see the BIOS as it seems I have lost VGA as well. Does anyone have any history with this board to help me troubleshoot? When I do power it on I do see the LED6 blinking green but no other lights or beeps occuring. Hopefully, someone can chime in!


What have you tried to troubleshoot? I’d recommend going down to a single stick of RAM in the primary slot to see if it boots. If it doesn’t, try swapping to a different sitck.

1 Like

Ok…I have tried zero memory to validate I get the audible beep warning and got that with no problem. I have tried 4 different sticks of memory (8GB DDR ECC) in the primary slot and still get no post. When I do power it on it spins up like it is going to boot normally but after a few secs shuts itself down. I never see the boot screen for the mobo. During all these tests I have nothing connected to the mobo such as storage. Any ideas on what I am missing? Also I will say that at one point this booted with no issue and I have changed nothing in the BIOS or added/removed any hardware.


Booting a system with no RAM is not a valid test of anything.

Noted…any other ideas for troubleshooting?

I have the exact same issue with the same motherboard, tested with 2 different CPUs, and multiple RAM sticks.
How can I troubleshoot the problem?

In the manual, AMIBIOS Post Code are mentioned, is there a way to read these ?

I am having the exact same issue @kybackpacker have you had any luck troubleshooting? previously server was working well for 2 years.

LED6 blinking green, no post, no VGA output, no beep codes.

steps I have taken to this point to try and trouble shoot:
1. removed all RAM and tested each RAM stick in the primary slot.
2. removed BIOS battery and power cord let it sit for 10 minutes then reinstalled and try to power up
3. reset CMOS
4. unplugged peripherals and drives


Which RAM and CPU are you using in your build?

1 Like

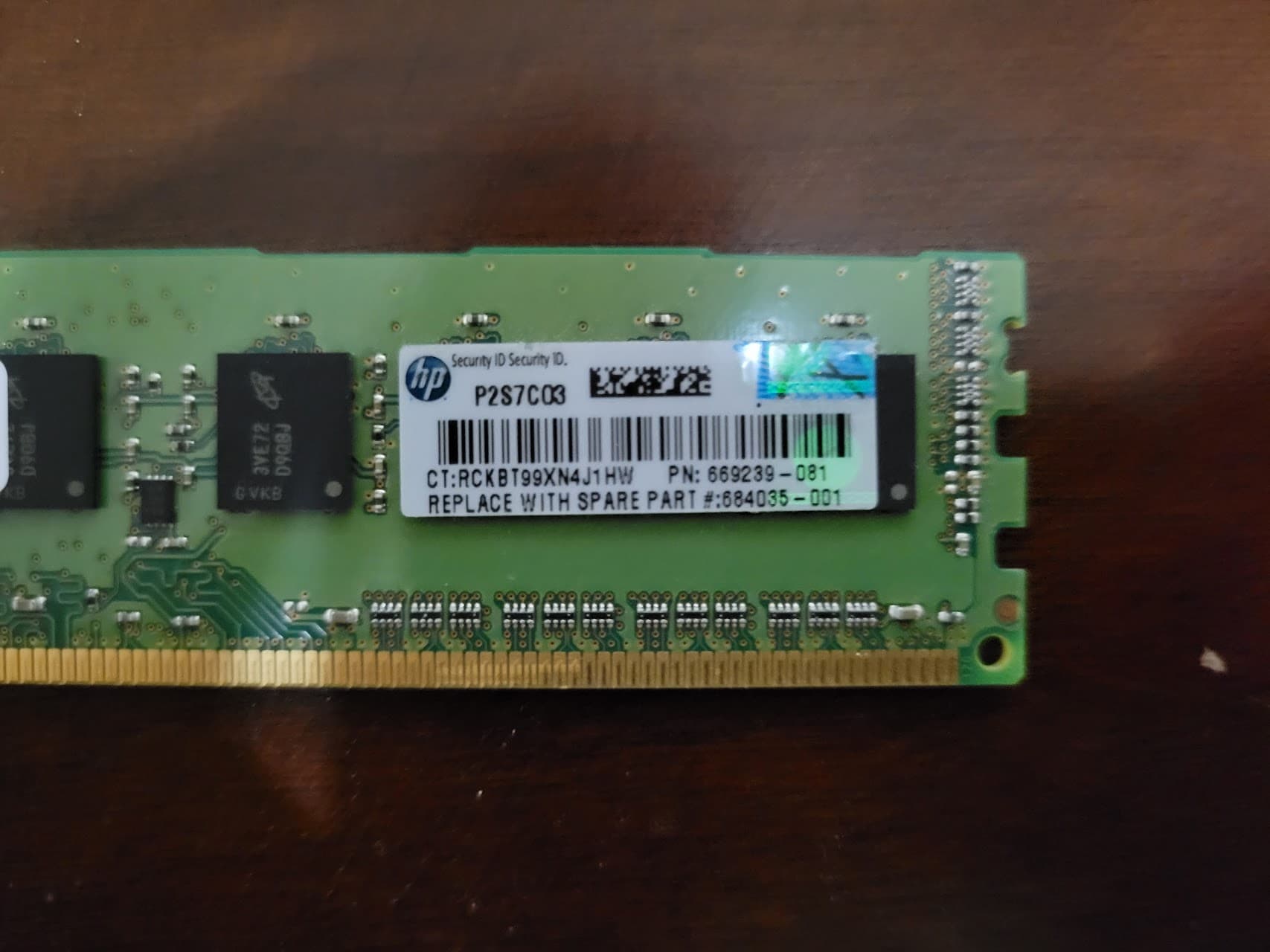

@JDM_WAAAT I harvested the hardware from a Chenbro NR12000 Processor is a Xeon E3-1230v2, 32GB DDR3 Unbuffered ECC RAM Picture of the ram sticker is included.

I swapped power supplies and no change still have LED 6 blinking

1 Like

Glad I found this and I’m hoping for a resolution (besides building new). I also just had an issue with my Tyan S5512 build, and also an E3-1230 v2. It was running two days ago but every service stopped responding so I had to reboot. I managed to post a few times but failed to boot (running OMV4 and need to upgrade). Now I’m the same as above, LED6 flashes green, but no beeps, no POST, no BIOS. After about 15-30 seconds LED3 turns red, and that’s where it sits.

If I could narrow it down the to motherboard and just replace that I might, but I feel like I can’t assume anything yet. Tried all the combinations of RAM, and a second PSU and I get the same behavior.

Has anyone been able to resolve this issue?

Just a follow-up, I tried a new bios chip it did nothing, so I bit the bullet and bought a new motherboard and it has since fixed the problem.

If it helps anyone, I ended up having to order a replacement motherboard which resolved the issue. I now have a backup BIOS chip as that was not the issue.

@Prailone did you buy the same motherboard Tyan S5512 or a different one?

Reviving a long-dead thread, but for anyone struggling with this I’ve found at least a semblance of a solution for anyone else that might stumble upon this thread… Based on the fact that several others have experienced this issue with the S5512 board there seems to be a design flaw in either the board itself or the BMC chip that causes BMC to overheat and become unresponsive.

This forum topic discusses a different board but I believe this is what happens with the S5512 as well: Tyan S7012 BMC/IPMI stops. AST2050 area overheating. | ServeTheHome Forums

As described in that article, if you see BMC no responding, ESC to skip on boot and BIOS hangs after listing devices–

  1. power the machine off
  2. cut power to the motherboard by unplugging/switching-off your PSU
  3. let BMC cool off (I gave mine 15min in a ~65ºF room for good measure, ymmv)
  4. re-supply power and immediately boot up before BMC gets too hot again

The topic above mentions that the BMC will start to overheat any time the PSU is delivering power to the motherboard regardless of whether the machine is running. I have also found this to be the case, so don’t skip step 2.

Obviously this is a bad long-term solution but if you are unable to boot at all, this should get you back in. On my board at least, this issue only impacts boot, after it boots everything else behaves normally (I’m not using BMC functionality so if you are, that may not behave normally). There is a S5512 BIOS update on Tyan’s website that mentions resolving a BMC error but I have not yet attempted this upgrade. I’ll report back if I do, for now I am buying a UPS and calling an electrician to balance my breakers.

I just wanted to share I had the same fate with this motherboard. This evening it would not POST and I had the same symptoms as described in this thread. I got about 3.5 years out of it - pretty sure a bunch of us got these Chenbro eBay deals for sub-$200. It was good while it lasted I guess. Also, I’m pretty sure I had the latest BIOS installed on mine from August 2013.

Mind if I Ask what MB you went with to replace the S5512?
