SNAFU in a classic case

Been running Unraid on an old Phenom x4 for a long time, but finally pulled the trigger on an upgrade after feeling pain from Plex transcodes and docker containers regularly competing for CPU. That little machine performed admirably, but 4C4T only gets you so far. It now gets a much deserved vacation.

Picked up the recent “array starter kit” group buy (thanks BitDeals) to supplement existing drives and HBA. Threw it all on a Supermicro dual LGA2011 board package from eBay and now I’m sitting pretty with 12C24T. Paired it with an extra 32GB of RDIMMs I also snagged more RAM on eBay to get me to 48GB, though I’m not really sure if/when I’ll ever need even close to that. Had a GTX 1050 laying around, so you know that was going in along with the kitchen sink. Still running Unraid.

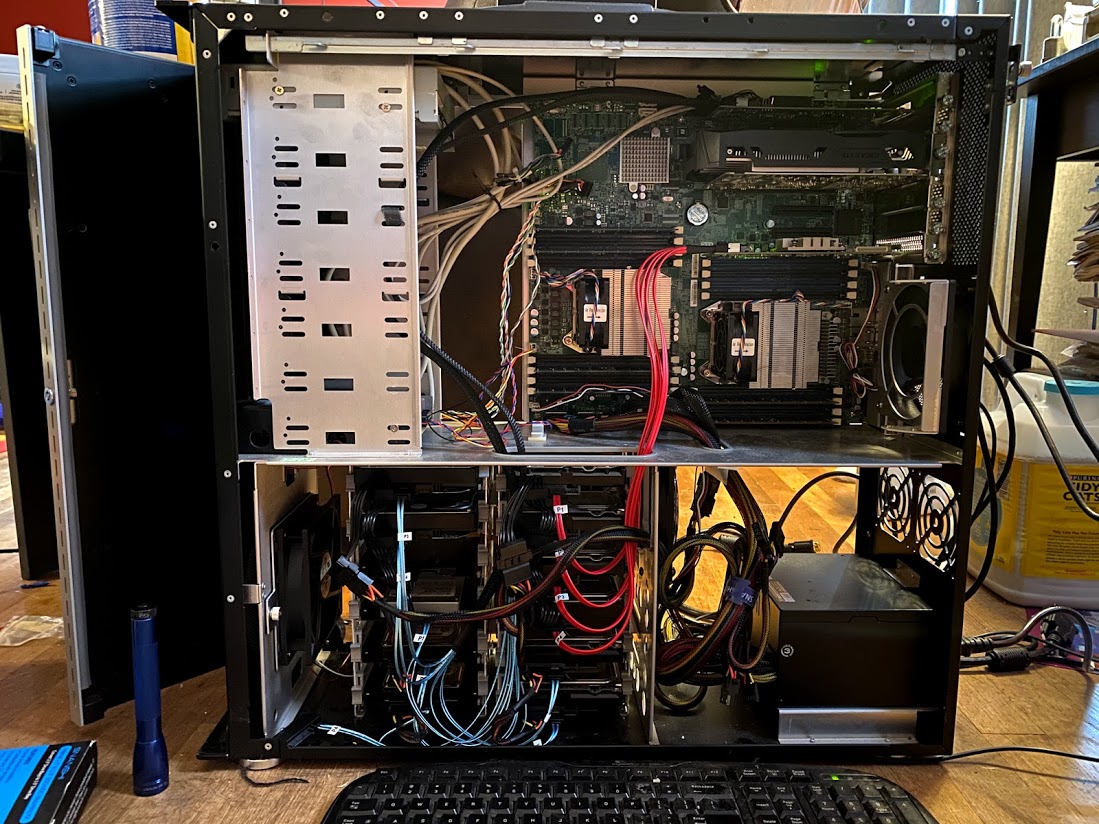

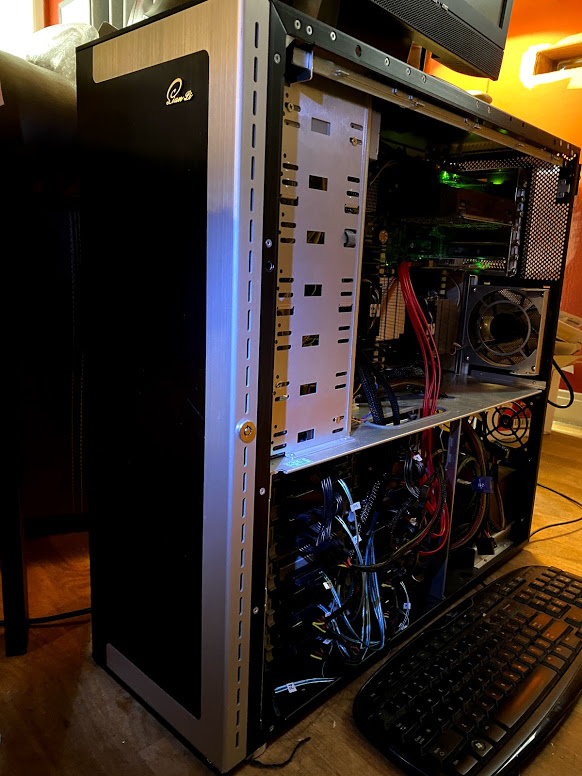

Didn’t have a case that could hold EATX, let alone the number of drives I now have. Thankfully a friend came to my rescue and unburied an aluminum Lian-Li PC-201 case (2006/2007) in his garage. I was skeptical that it would work out due to the age, but I ran into surprisingly few hurdles. It was missing holes at three of the needed standoff points, but a drill solved that. The standoffs self-tapped the new holes without a hitch. It’s a massive case and I don’t even want to think about how much it cost back in the day. Already have all 12 3.5in drive bays full, so a DAS box might be in my future.


Uses:

  • NAS
  • Plex media server
  • Sonarr/Radarr
  • sabNBZD/Deluge
  • InfluxDB + Grafana
  • Home Assistant + ESPhome
  • Minecraft server for the kid
  • Unifi controller
  • MQTT server
  • VMs for software development

Specs

  • Supermicro X9DRH-iF
  • 2x E5-2620v1
  • 6x 8GB PC3-12800 DDR3 RDIMM
  • Nvidia GTX 1050
  • LSI 9211-8i HBA
  • HPE H240 HBA
  • 1x 8TB Seagate Ironwolf SATA HDD
  • 1x 8TB Seagate Compute SATA HDD (SMR sigh)
  • 4x 4TB Seagate Ironwolf SATA HDD
  • 2x 4TB Toshiba Enterprise SATA HDD
  • 1x 500GB Silicon Power SATA SSD
  • 2x 300GB HP 10k SAS HDD
  • 1x 200GB Samsung SAS SSD

ToDos:

  • Cable management needs work.
  • Need to take the one 8TB SMR drive out back and shoot it… or make it offline backup.
  • The E5-2620s are fine for now, but will be on the lookout for something faster than 2Ghz.
  • Replace the existing CPU coolers with something that doesn’t sound like a jet engine.
  • Need to design a 3D printable 3.5in drive cage for the 5.25in void. Need MOAR DRIVES.
  • Need to upgrade the UPS. Pretty sure 60% UPS load at low server load is no bueno.
1 Like

How good is this build for stream to 3 devices - and would it be a build for gaming rather than a minecraft server

SNAFU or NAS Killer 4.0 are plenty for what you are looking for.
