How to setup an ipsec vpn between 2 instances of pfsense using both a static (work) and dynamic ip address (home office). However, a static IP is NOT a requirement.
Software used
- pfSense: https://www.pfsense.org
Requirements
- Dynamic OR static IP address
- A domain name or a free dynamic DNS
provider. - CPU with AES-NI (if your uplink is 20Mbps or faster)
Configuration
I’m going to assume that if you’re at this point, you already have a working pfSense configuration at both locations.
Both locations must NOT have the same internal LAN address - meaning both can’t be running 192.168.1.x addresses, one can run 192.168.1.x while the other can run 192.168.2.x.
Final note - the VPN configuration on both firewalls will be exactly the same, save for parts that require IP addresses or hostnames.
Let’s get started:
- Click on VPN -> IPsec, and on the bottom right, click on the green “+ Add P1” button at the bottom of the screen.
Phase 1
General Info
- Key exchange version: IKEv2
- Internet Protocol: IPv4 (IPv6/Dual stack will work if you’re running IPv6 at both sites)
- Interface: WAN (or whatever you named the interface with the public IP address)
- Remote Gateway: this is where you need either your own domain, or a free Dynaimc DNS provider - or manually entering the IP addresses works, users with dynamic IP addresses the “work” location will have to update your IP address manually every time it changes.
- Remote Gateway (home): work.piracyforjesus.xyz
- Remote Gateway (work): home.piracyforjesus.xyz
- Description: put whatever you like or leave blank
Phase 1 Proposal (Authentication)
- Authentication Method: Mutual PSK
- My Identifier: Distinguished name:
- Home: home.piracyforjesus.xyz
- Work: work.piracyforjesus.xyz
- Peer identifier: Distinguished name
- Home: work.piracyforjesus.xyz
- Work: home.piracyforjesus.xyz
- Pre-Shared Key: On one firewall, click generate key, then copy & paste that key to the other firewall
Phase 1 Proposal (Encryption Algorithm)
- Encryption Algorithm:
- Algorithm: AES128-GCM
- Key Length: 128 bits
- Hash: SHA256
- DH Group: 14 (2048)
- Lifetime (Seconds): 28800
Advanced Options

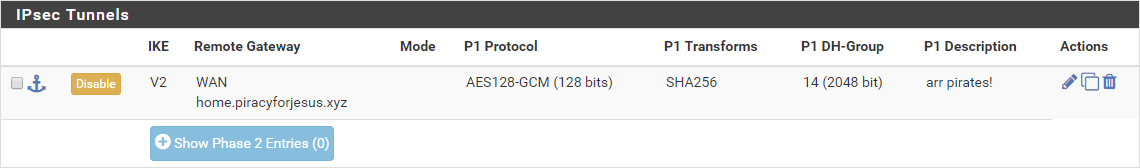

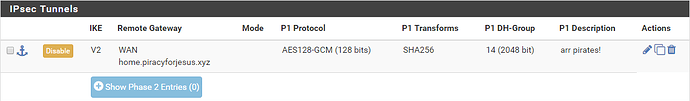

Leave everything defaulted in this section, and click Save. When finished, it should look like this:
Phase 2
From the above screen, click on “Show Phase 2 Entries (0)” and expand out the menu, then click on the green “+ Add P2” button that appears.
General Information
- Mode: Tunnel IPv4
- Local Network: LAN subnet
- NAT/BINAT translation: None
- Remote Network: Network
- Address (Work): 192.168.10.0/24
- Address (Home): 192.168.1.0/24
- Description:
- Home: Work LAN
- Work: Home LAN
Phase 2 Proposal (SA/Key Exchange)
- Protocol: ESP
- Encryption Algorithms: AES128-GCM @ 128 bits
- Hash Algorithms: AES-XCBC (or SHA256 if your CPU doesn’t have AES-NI)
- PFS key group: 14 (2048)
- Lifetime: 3600
Advanced Configuration
- Automatically ping host: set this IP address to a server you run 24/7, this will keep the VPN up 24/7

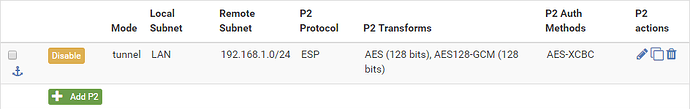

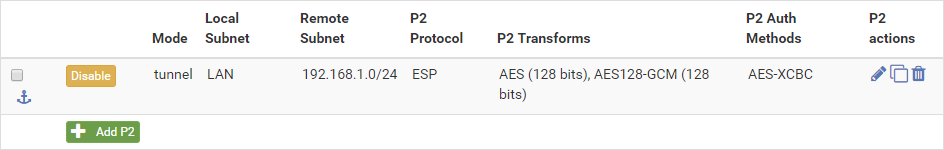

After you hit save, this is what your Phase 2 will look like:
Firewall Rules
After you hit “Apply Changes” on both firewalls, your IPsec VPN should connect right away. You may find that you can’t ping anything across the VPN though - you’ll need to click on Firewall -> Rules -> Add to
create a hole in the firewall to allow traffic to pass.
Insecure allow all traffic rule
This rule will allow ALL traffic to traverse the firewalls (remember you have to make the same rule for both sides). This is NOT a secure setting! If your home network gets compromised, your home network can
be a jumping off point for bots/hackers/viruses to invade the network on the other side of the VPN.
You have been warned.
Edit Firewall Rule
- Protocol: Any

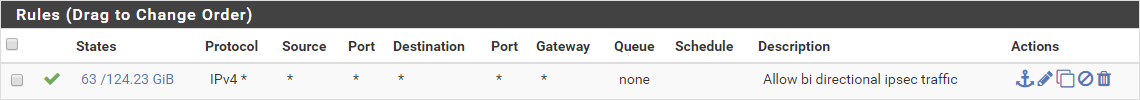

And that’s it, unless you want to add a description. End result looks like this:
