NK 5.0 build issues

Builds [LGA1150] NAS Killer 5.0
1

I am having an issue with my build and I not sure if it is a configuration issue or a compatibility issue. This is what I have put together but I can’t figure out how to get the motherboard to recognize the SSD and the adaptec raid controller. Bios shows no drives other than the OS flash drive. Computer boots and I can get into unraid but there are no drives available. Does anyone have any ideas?

ASRock B85 PRO4
Intel Core i5-4670
16GB 2x8GB PC3-12800U
ASR-71605 Adaptec 16 Port
x2 10tb sas drives
Intel SSD PCIe 1.6TB

2

BIOS won’t show the hard drives as they are connected to the Adaptec.

Have you tried the 3.3v mod? That’s almost guaranteed to fix your problem!

3

Yes, I used tape to cover the pins on each hard drive. Part of my concern is that the computer does not recognize the Intel SSD either.

4

Can you share some pictures as to how everything is set up?

5

20210822_001322
20210822_0013221920×1440 444 KB

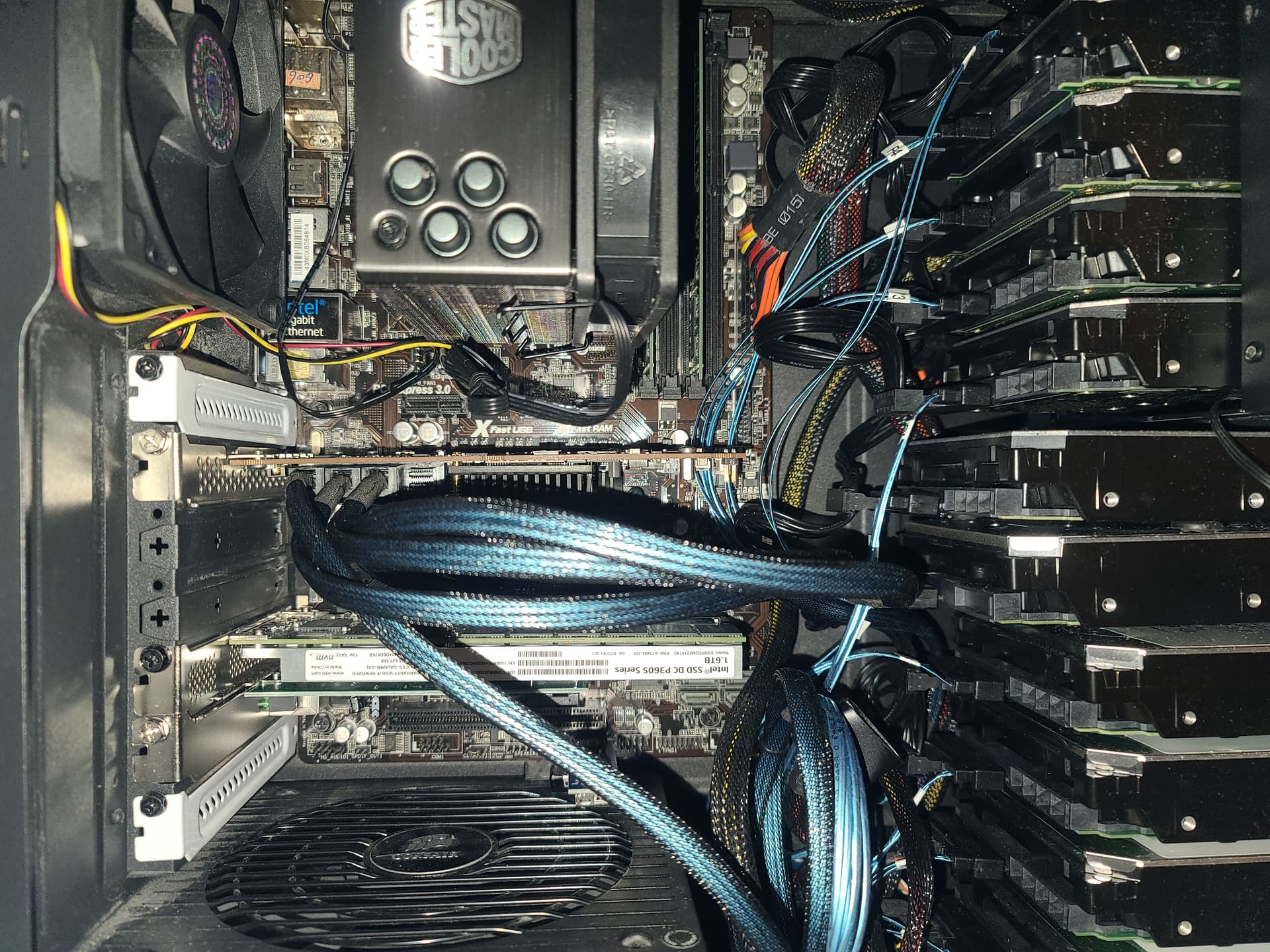

Top card is the Adaptec ASR-71605. Next one down is the Intel SSD and then last is a second NIC. I did update the BIOS to the newest version. I found a thread on Asrock’s forums about how to install windows on a PCIE SSD and my settings match theirs but I still dont see either pcie device.

6

Is it possible it’s a bad board? Did you check for bent pins in the socket?

7

Thats what I am thinking. I am trying to find some spare parts to test. Thanks for the help.

1 Like
8

Do you have a NVME drive installed on the motherboard? On some MBs that will deactivate a controller. Just a possibility.

9

No, NVME. Really, the only thing not listed was 16gb of ram so pretty bare.
