NAS Killer 5.0 (Complete)

I am gearing up to build an NAS Killer using the board expected to be used when it becomes official. The below is what I am currently gathering for parts. The PSU is one I picked up last year on the cheap.

Not listed below are the 6x WD Red 6TB NAS Hard Drive - WD60EFRX that I am pulling out of my Synology NAS and moving to the server.

Current All in cost (not including 6TB drives is $988.07 before tax

I will update this post as things develop.

Component Price Qty Description Store Link
MOTHER BOARD $65.00 1 Supermicro X10SL7F Motherboard High Performance LGA 1150! (seller auto accepts $50 offer)
CPU $78.99 1 Intel Xeon E3-1240 v3 SR152 3.4GHz Quad Core LGA 1150 CPU Processor *km
CPU Cooler $45.99 1 EVGA CLC 120mm All-In-One CPU Liquid Cooler, 1x 120mm Fan, Intel, 5 YR Warranty, 400-HY-CL11-V1
RAM $49.98 2 Sticks Kingston 8GB 2Rx8 DDR3-1333 PC3-10600E ECC Unbuffered 1.5V Memory
Case $99.99 1 Rosewill RSVL4500 4U Rackmount Server Chassis with 15 Internal Bays and 8 Fans
Case Rails $36.89 1 iStarUSA TC-RAIL-26
FANS 1 $83.00 6 Fans Noctua NF-F12 PWM, Premium Quiet Fan, 4-Pin (120mm, Brown)
FANS 2 $9.98 2 Fans ARCTIC P8 PWM PST - 80 mm PC Case Fan with PWM PST
POWER SUPPLY $44.99 1 EVGA SuperNOVA 850 G2, 80+ GOLD 850W, Fully Modular, EVGA ECO Mode Item # 220-G2-0850-RX
SATA SPLITTER $28.28 4 4X SATA Power Splitter Adapter Cable (PYO4SATA)
HDD $319.98 2 WD - Easystore 10TB External USB 3.0 Hard Drive - Black
PCI-E SSD $125.00 2 F80 800GB Flash Accelerators [Closed] F80 800GB Flash Accelerator PCI-E SSD, no minimum order [round #7]

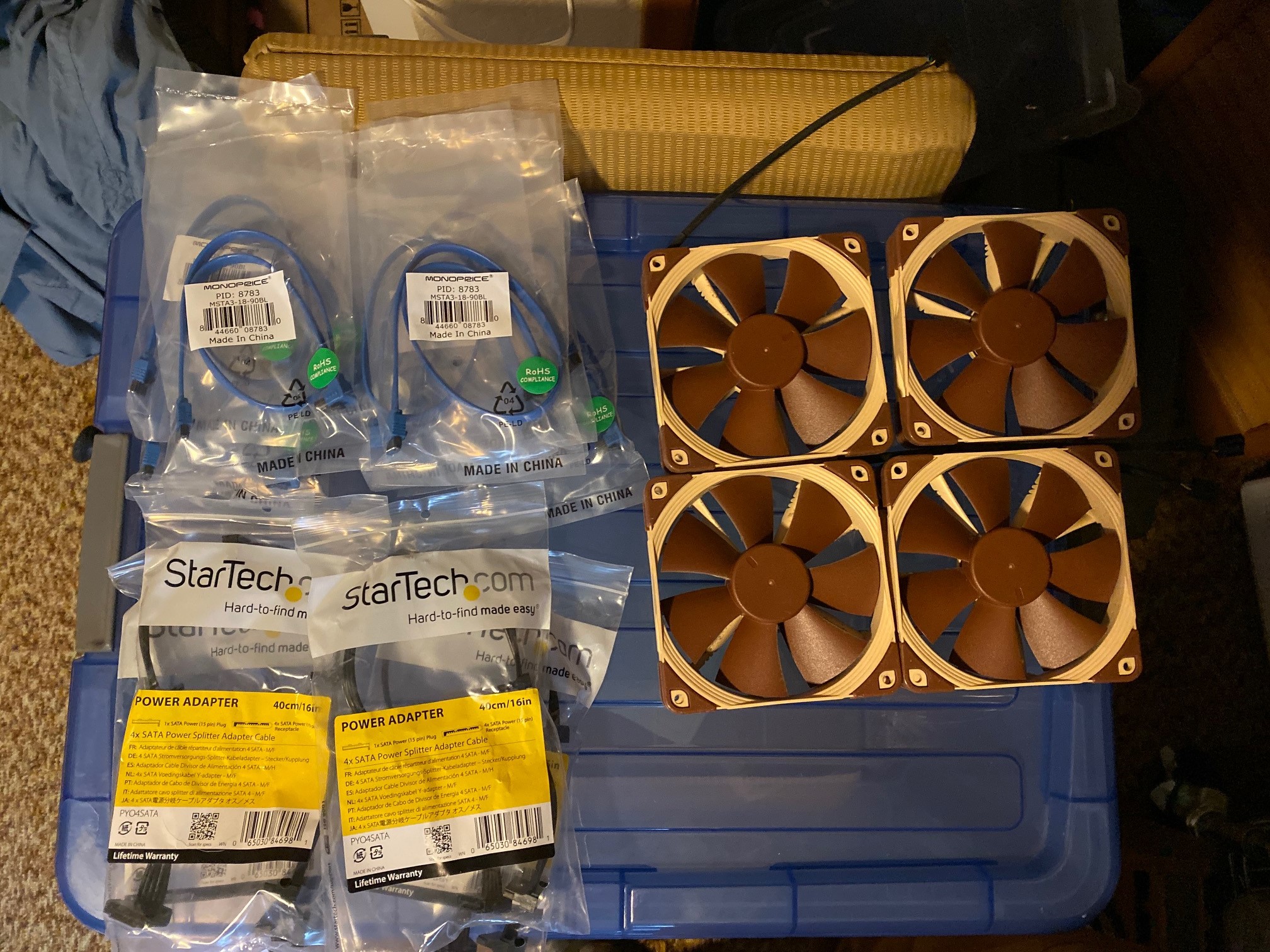

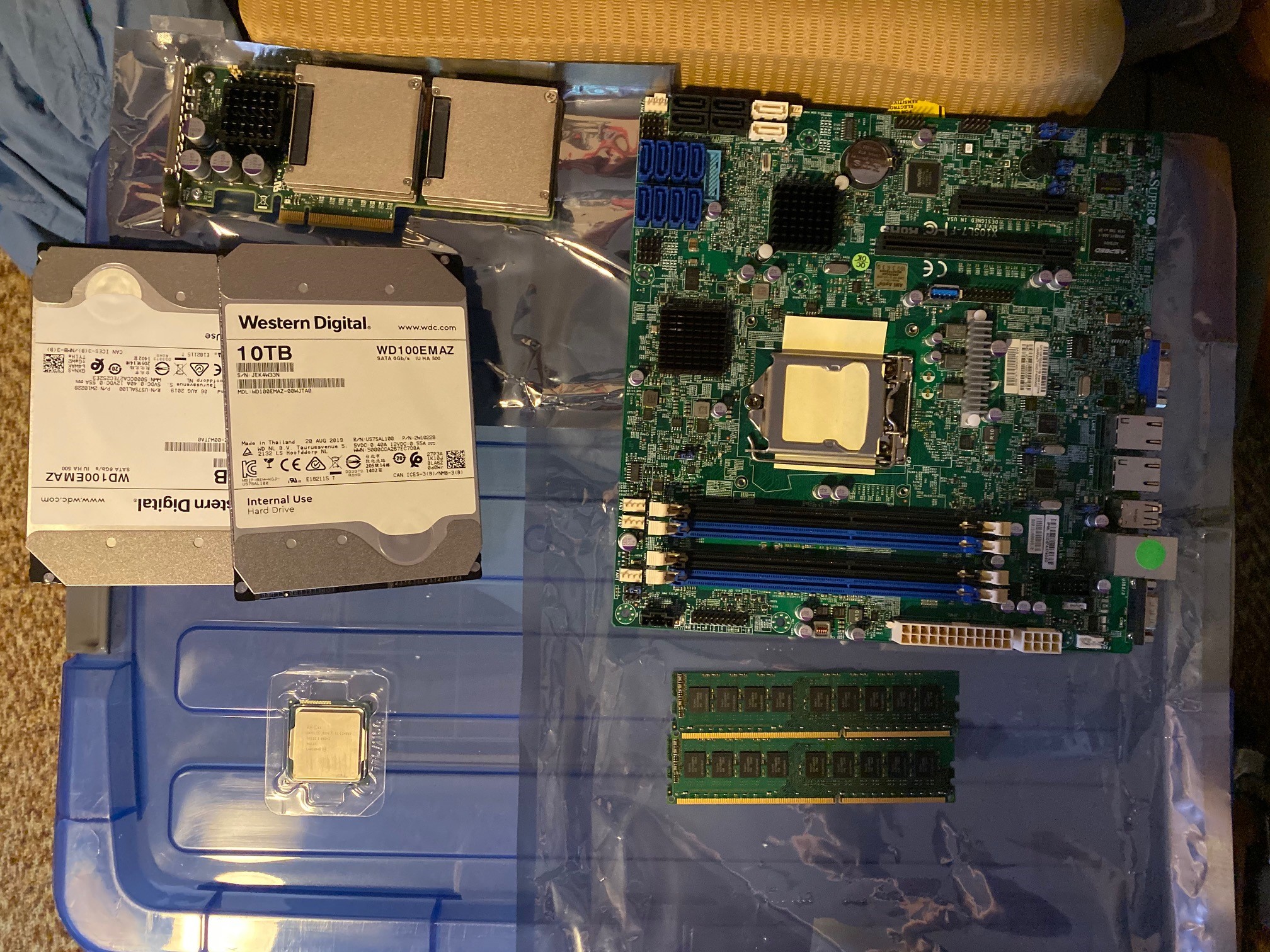

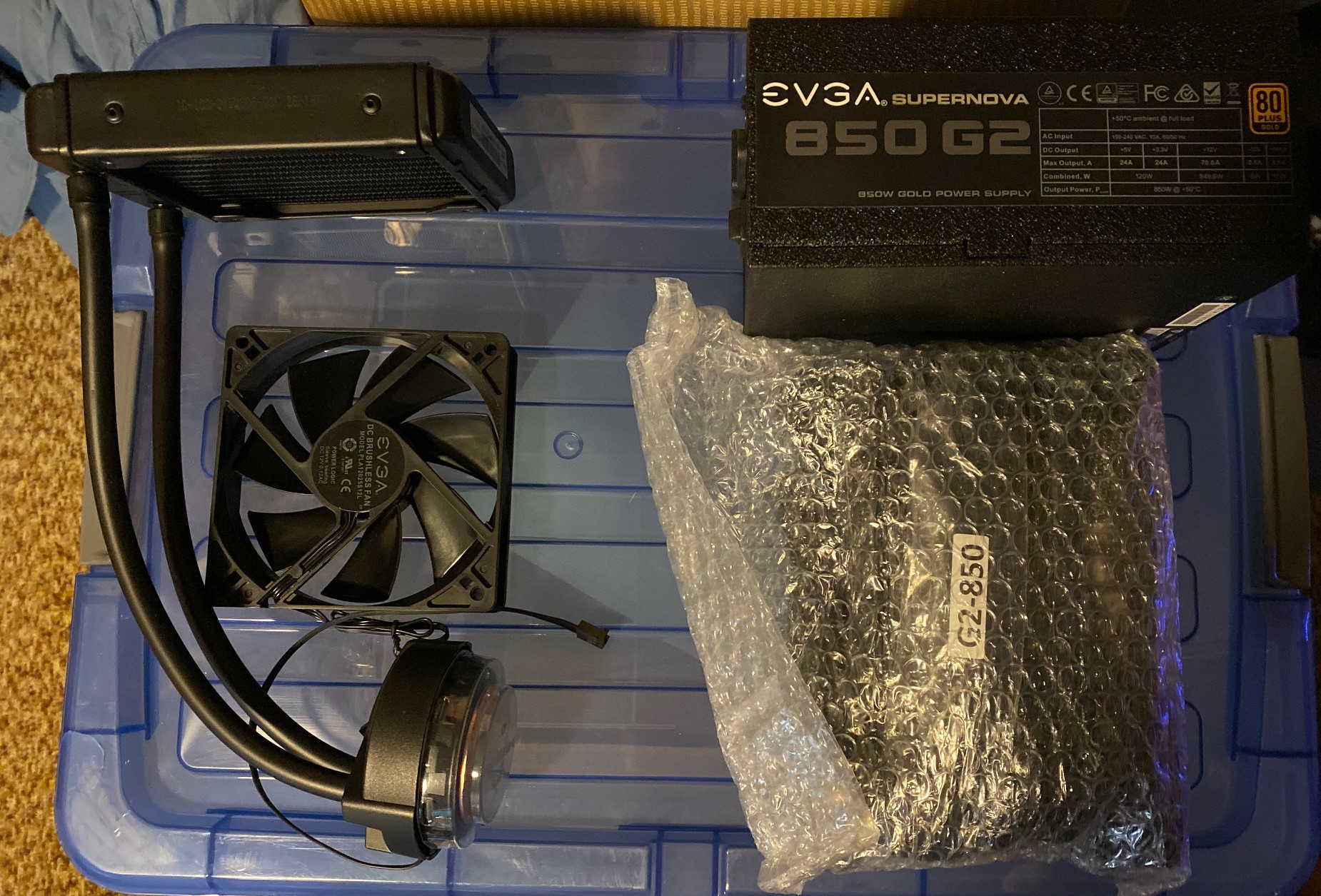

Let the pictures begin!!!

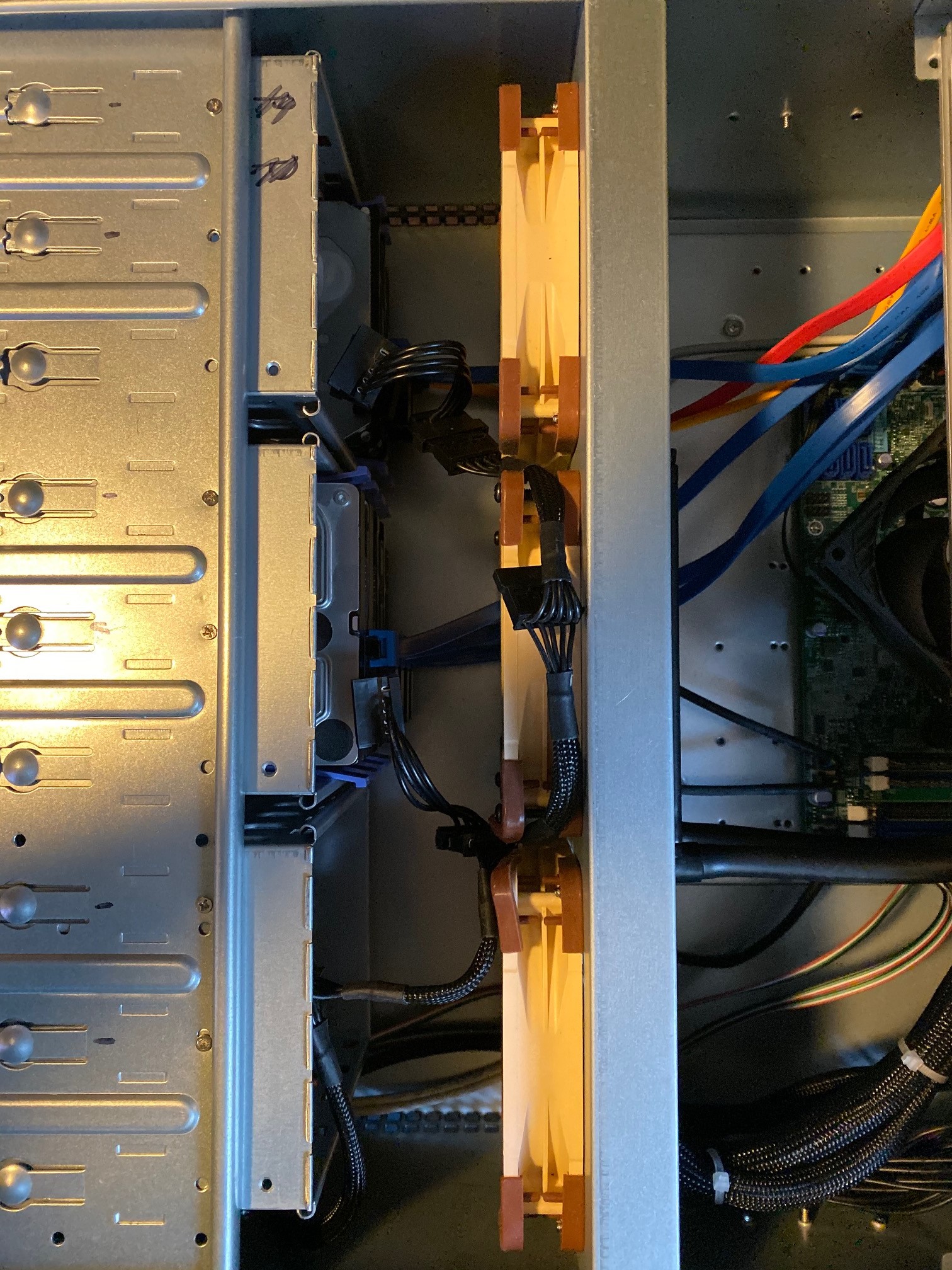

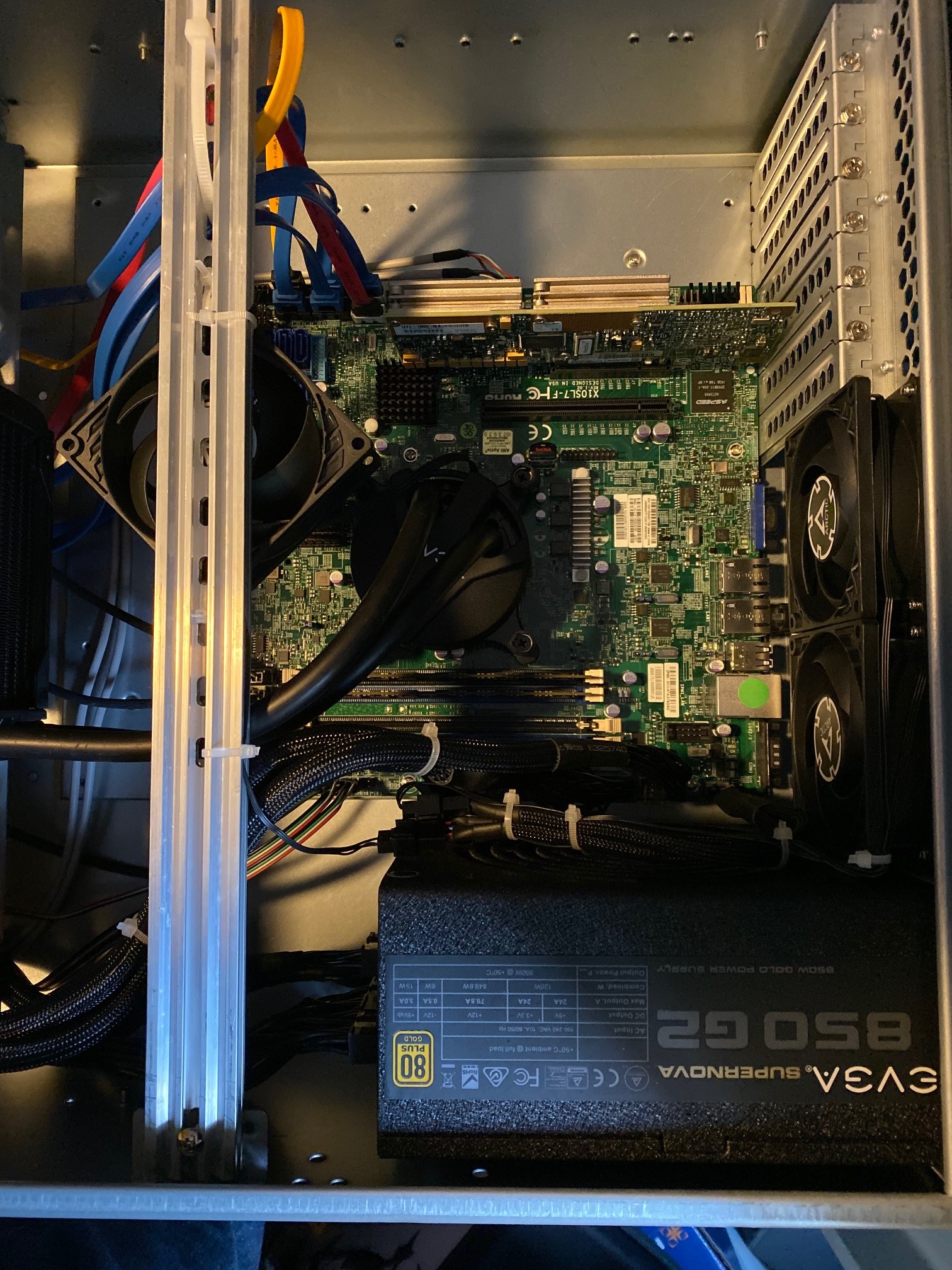

All parts are installed now. I have a few more hdd’s to slot in and some wire clean up to do.

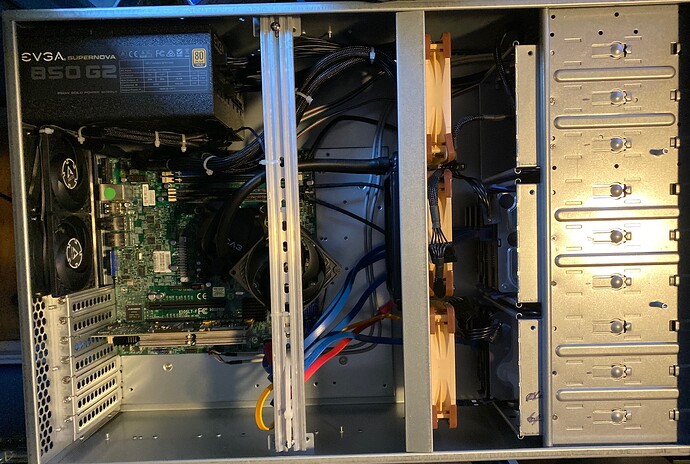

Rosewill Case is on rails and in my rack.

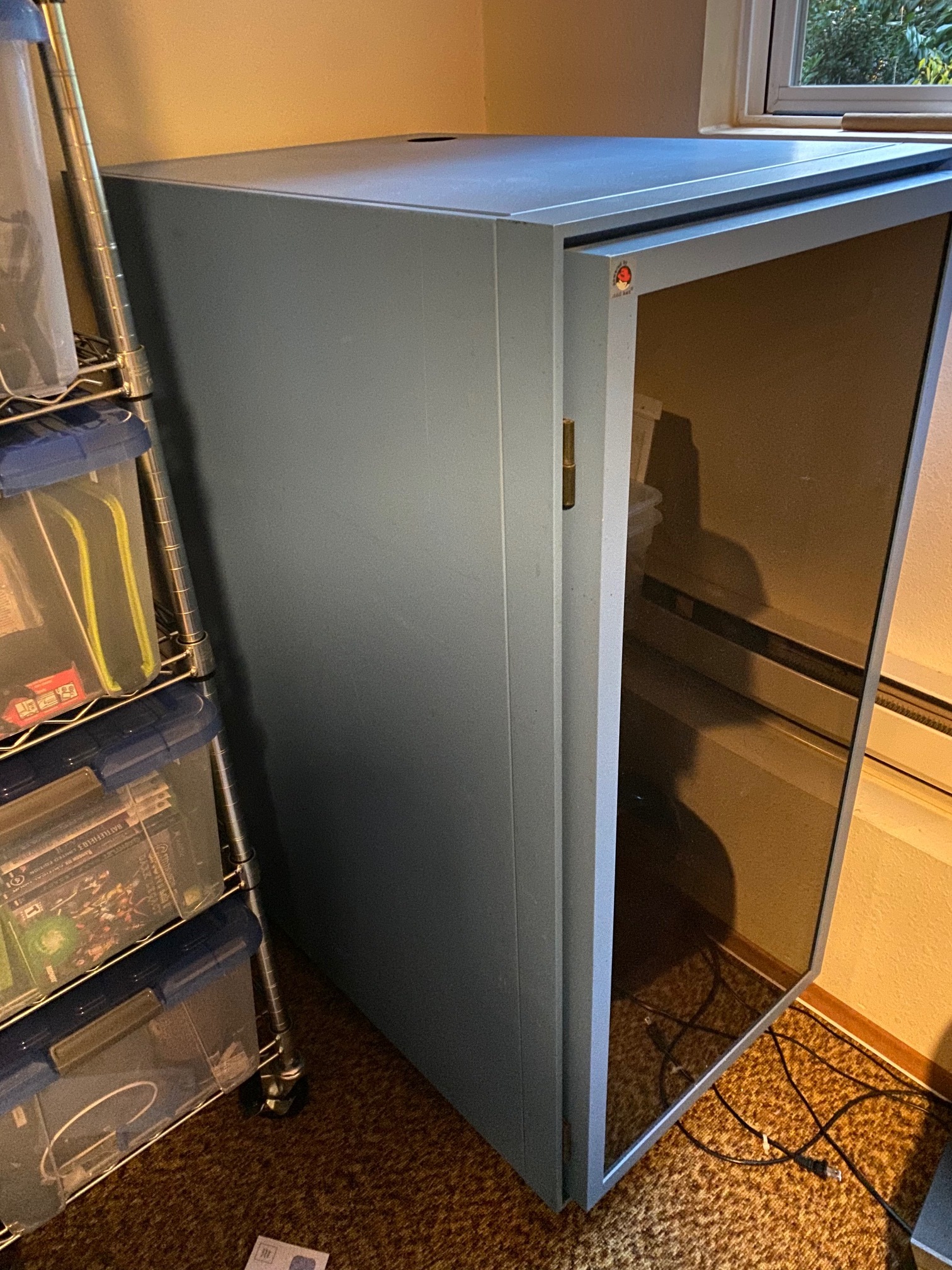

The Rack was killer OfferUp find. I grabbed it for $40

More to come…


Noob here.
I just ordered a X10SL7F, along with one of the F80s.
Does it matter which slot I run the F80 in…or will it run at full speed in either slot?


You would need to run it in the X16 slot since the F80 is 2.0 x8, but I bet you would still have good results with it on an x4 2.0 I’d try it on both and see if it makes a huge difference.

That’s what I figured.
The F80 was an impulse buy. Didn’t even think of the slots.
Parts are still in transit, so I’ll find out when they get here.

Hi. I’m trying to piece together a similar system. Are you sure this ram works with this board? The specs here: X10SL7-F | Motherboards | Products | Super Micro Computer, Inc. say 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs. Or does this mean “up to 1600MHz”?

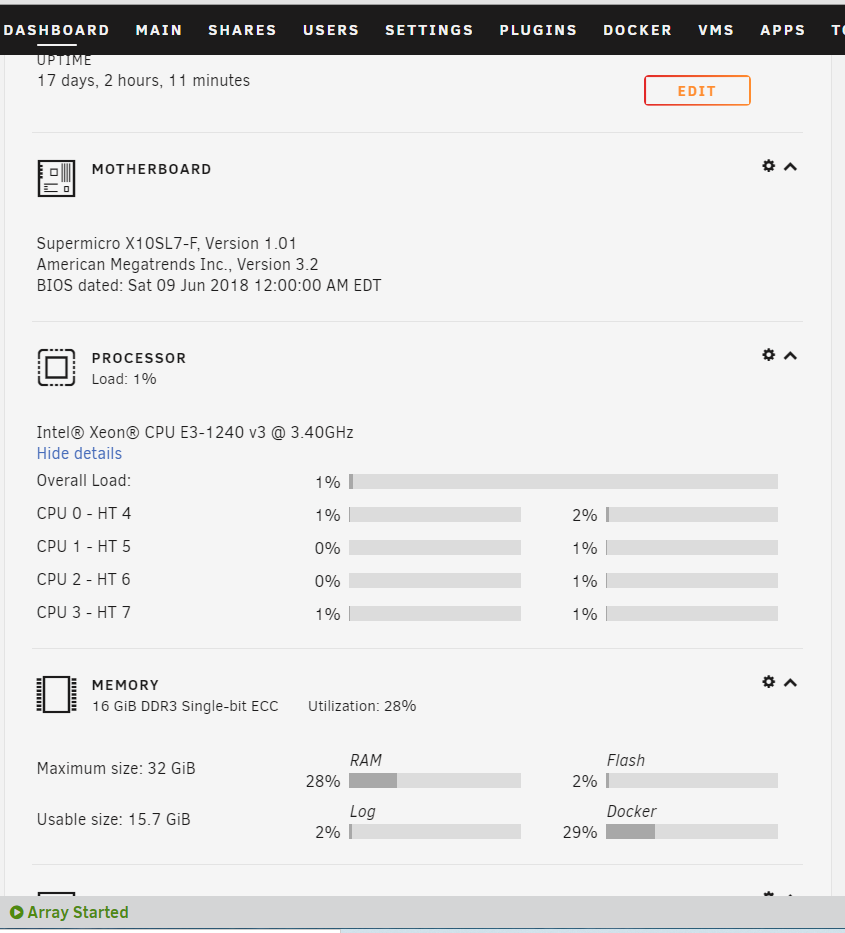

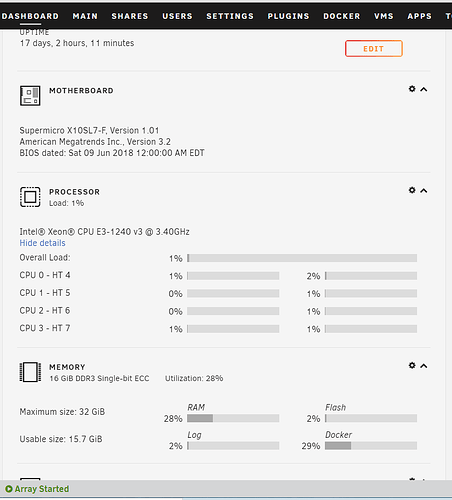

This is what I have running in it. I reviewed it all with JDM ahed of time.

Awesome! I’m pulling the trigger! Thanks for the response. Are you happy with this build after putting it together? Anything you wish you would have done different?

No nothing I would change at this point. This build does exactly what I need it to do with plenty of power left over for other stuff.

1 Like

@doctapeppa Any update on your progress?

I built it a few weeks ago. It’s running great! The bios is a breeze to go through and having all of these ports available for so many drives is great. It’s currently filled with 42TB from 8 shucked drives and it’s sitting in an Enthoo Pro case (which I’m super happy with as well!) My cable management is horrid so I don’t think it’s picture worthy but this thing is more beast than supermodel anyways.

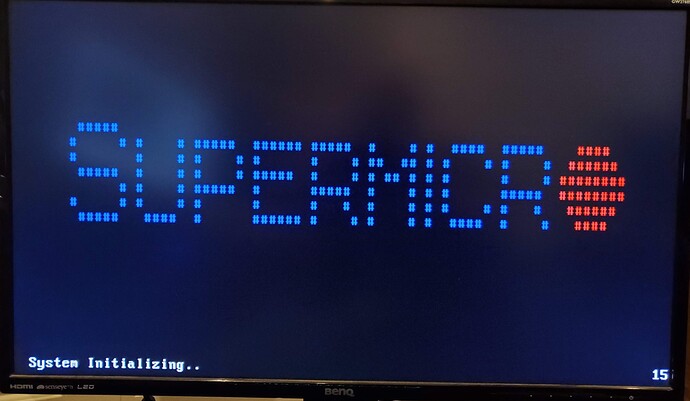

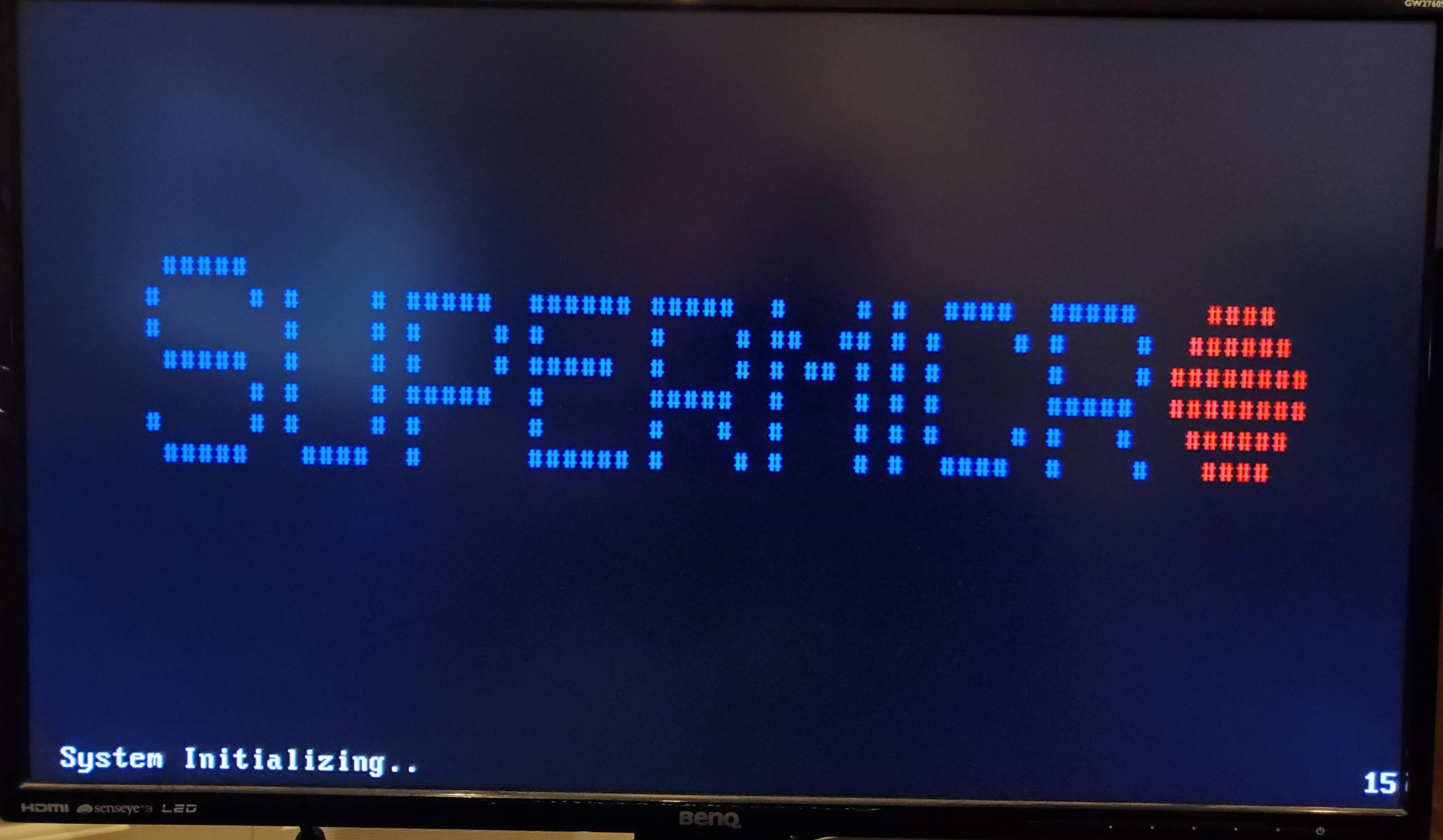

I’ve started on this build, but I think my memory choice is suspect. When I power on my system, I’m getting to the Supermicro “system initializing” screen with an error code of 15. Can anyone confirm if I went the wrong direction with my RAM choice?

Timetec Hynix IC 8GB DDR3L 1600MHz PC3-12800 Unbuffered ECC 1.35V CL11 2Rx8 Dual Rank 240 Pin UDIMM Server Memory Ram Module Upgrade (8GB)

Intel Xeon E3-1240 v3 SR152
Supermicro X10SL7F

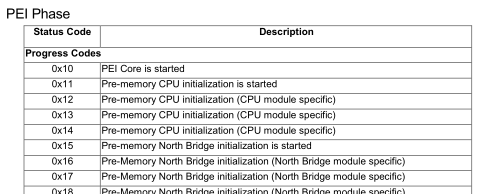

You’re fine. “15” isn’t an error code:

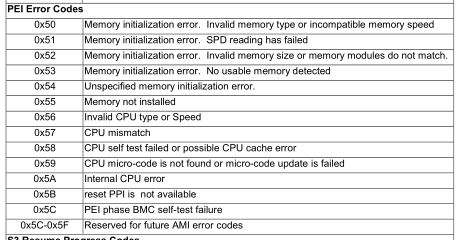

50 - 55 are Memory Error Codes:

1 Like

Thank you for the codes! So, how long does it usually take to post? I’m pretty sure I left it going for 5 minutes. I’ll try again tonight and report back.

Unfortunately, I’m stuck at code 15 even after 30 minutes. If not memory, bad motherboard or CPU?

From Coz’s post code list above, code 15 is saying that North Bridge failed to initialize. I recommend powering down and double check your RAM compatibility, by emailing Supermicro directly.

Thanks for the advice, I reached out to SMC and they suggested a few different troubleshooting steps. It turns out I had a very tiny spec of what I think was thermal paste blocking just one of the CPU pins/pads. I cleaned and reinstalled the CPU and I’m now posting fine and the system have successfuly loaded ESXi.


Great to hear!
