NAS Killer 4.1 Tower


Part Model Price Purchased from
Combo Chenbro NR12000 Combo 3/4 $180.00 ebay (OBO)
Motherboard TYAN S5512 $0.00 included in combo
CPU Intel Xeon E3-1230v2 $0.00 included in combo
Memory 4x Kingson 8GB DDR3 ECC Ram $0.00 included in combo

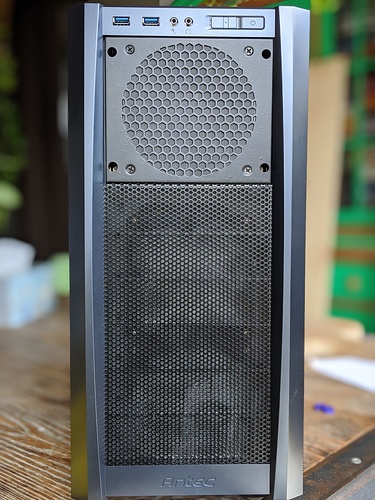

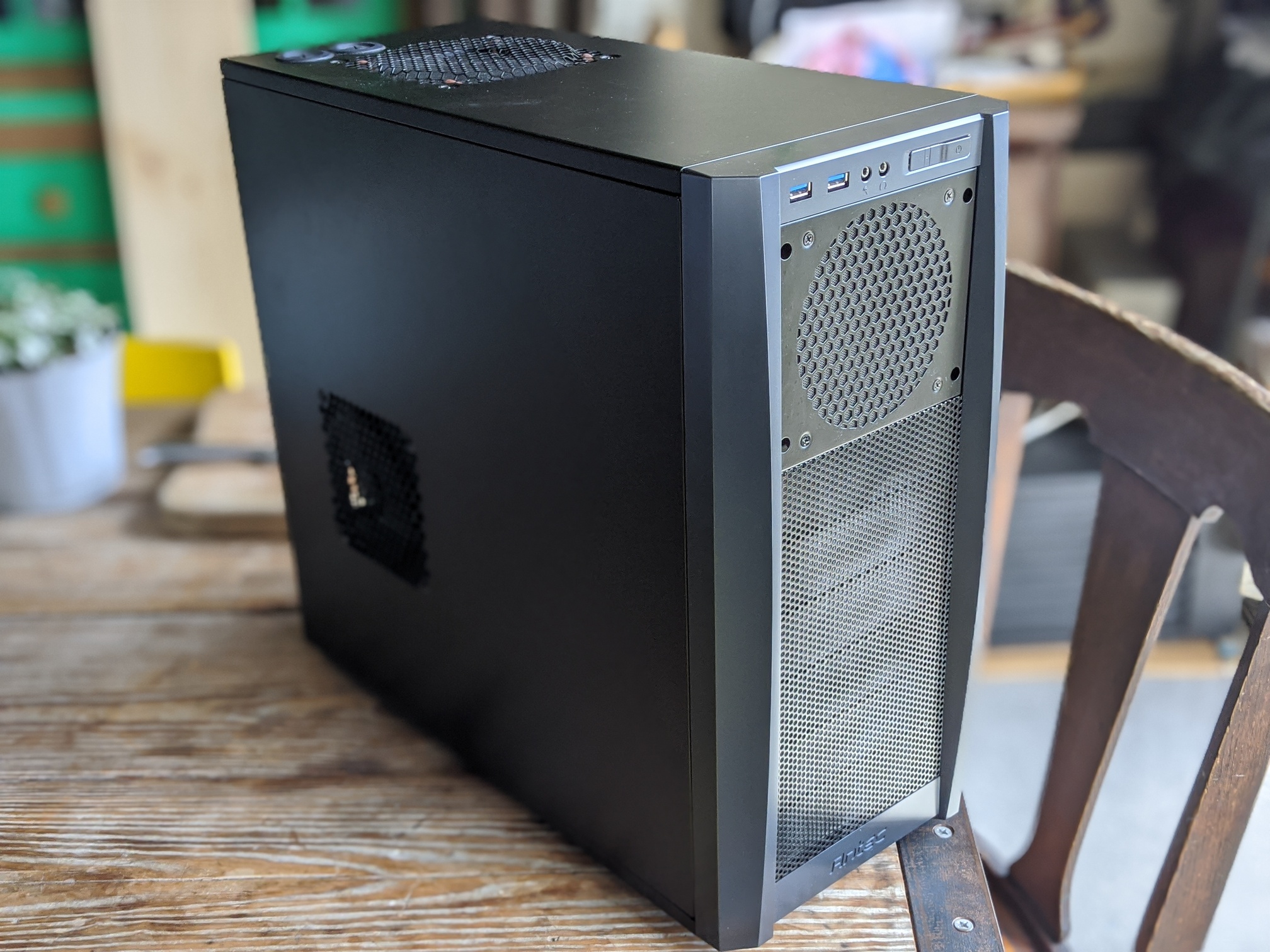

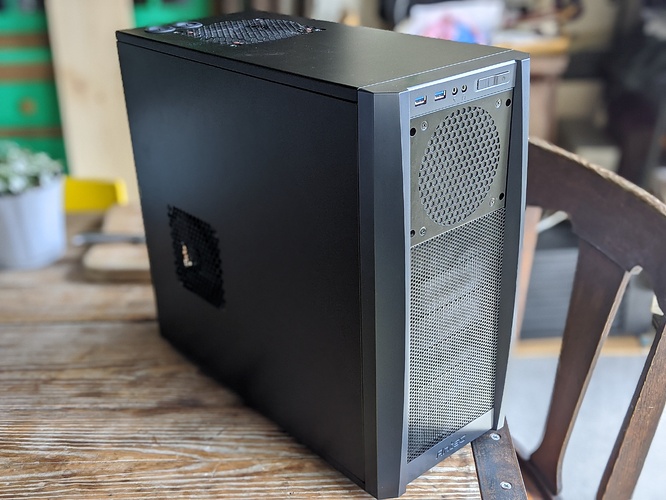

Case Antec Three Hundred Two $40.00 Local
PSU Corsair RMx 550 $0.00 Left over from old build
Fans 2x Noctua NF-F12 120mm fans $0.00 Left over from old build
Fans Noctua NF-A12x15 120mm Slim fan $0.00 Left over from old build
Fan Adapter Noctua NA-SFMA1 140mm-120mm adapter $12.00 Amazon
Fans 2x NZXT AEF 120mm Fans $0.00 Left over from old build
CPU Cooler Noctua NH-L9i $0.00 Left over from old build
HDD Cage Rosewill RASA-11001 4bay cage $30.00 Ebay
SSD ADATA SU635 480gb (Cache) $55.00 Amazon
HDD 2x WD Easystore 12TB $340.00 Local
HDD 2x WD Easystore 10TB $360.00 Bestbuy
HDD 6x WD SAS 3TB (when they arrive…) $108.00 Bitdeals Tech
Total without Disk $262.00
Total with Disk $1,125.00


4C / 8T, 3.70GHz Turbo
6 3.5" bays (4 3.5" bays via HDD cage)
LSI SAS2008 onboard



This way my first foray into building a server. I’ve built many computers in the past but never worked with server hardware. The most intimidating part of all of this was trying to figure out the compatible parts but this forum/discord/guides provided everything you could possibly want.

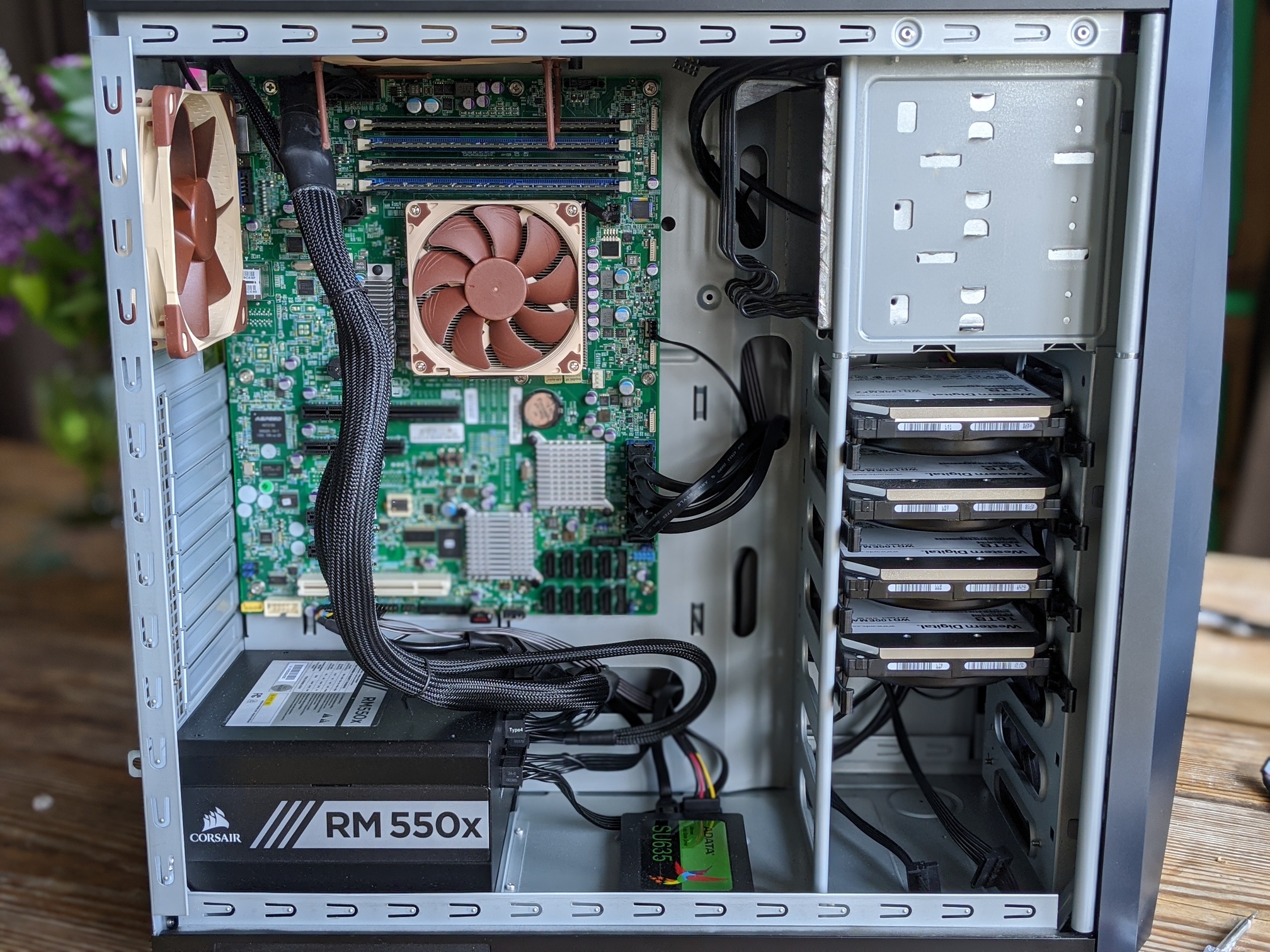

One of the few issues I ran into was with a VGA-HDMI cable to my monitor in order to flash the LSI card. I was using an active VGA-HDMI cable but my main monitor didn’t always pickup the signal from it. I borrowed a monitor with vga support from a friend in order to flash it. The other issue was I needed to mod my case (removed some tabs) in order to fit the Rosewill Cage into the 5.25" bays.

I originally built this to be an all in one NAS/Plex server for a few friends but that didn’t last long. I now have a HP290 handling my plex transcoding, so this is just running Radarr, Sonarr, tautulli, deluge, nzbget. I’m sure I’ll find other uses for it soon enough and I just want to keep upgrading things…

1 Like

Looks great! I have the same case for my NK4.1! :slight_smile:

How difficult was it to mod your case for the cage?
My drive counts aren’t up to use the cage yet, but definitely something I will be needing in the future!

Haha, yeah I saw your post and as like, OK, we’re twinning! No it wasn’t too bad, literally just took everything out of the case and took a grinder to the tabs. I also had to grind down the back edges of the cage as well as there was some doubled up material there that wouldn’t allow it to fit. It’s still a very tight fit but there’s nothing locking it in place, just friction. If you don’t need the additional 1 drive, it might just be easier to use 3x single drive 5.25" to 3.5" adapters.
