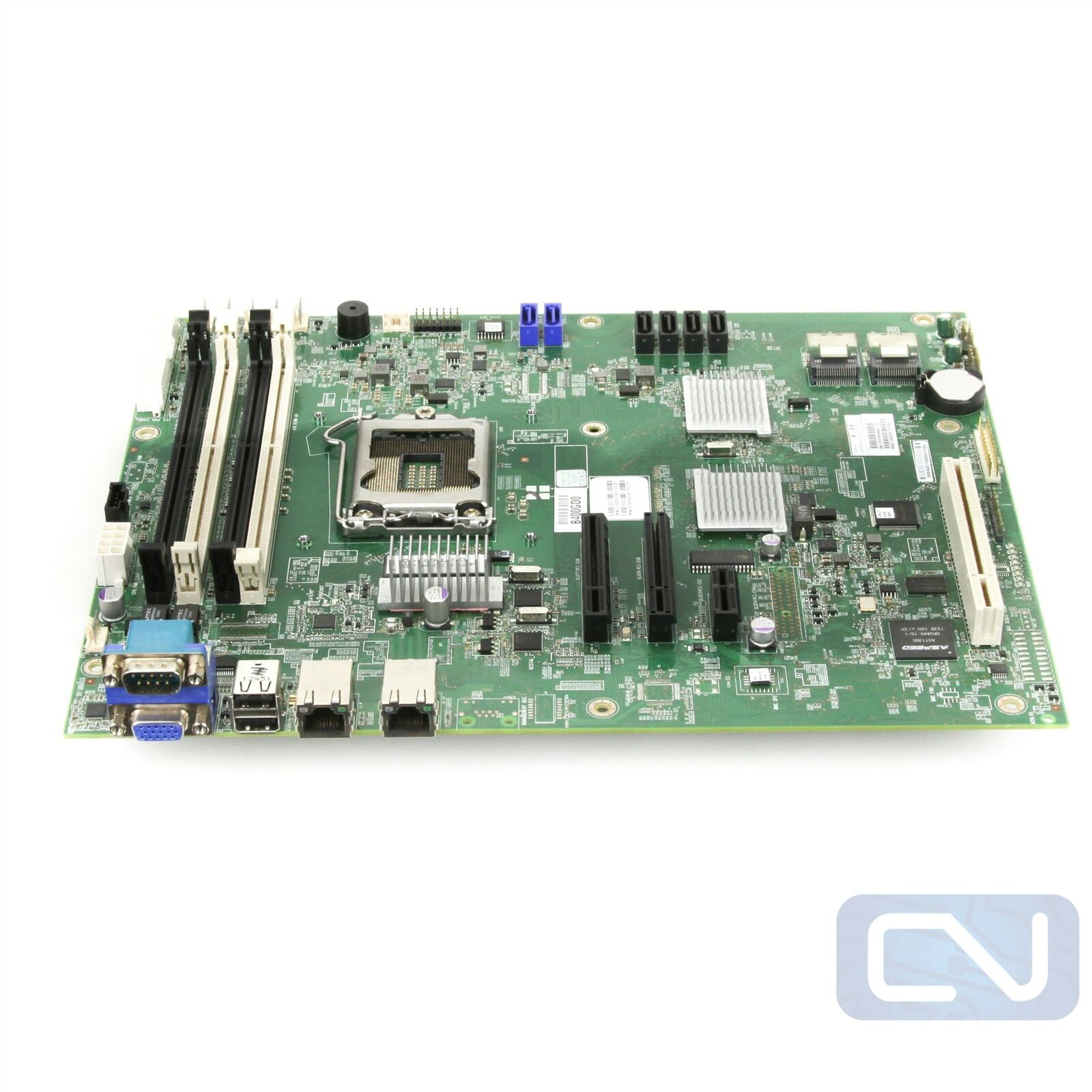

Inventec B400GD0 LGA 1155 motherboard - NK 4.0
Great budget NK 4.0 board, similar features as the B400GA0 featured in the NAS Killer 4.0 guide.
Features LSI SAS 2008 onboard with SFF-8087 ports.
- Good Deal
- Mediocre Deal
- Bad Deal
0 voters
Inventec B400GD0 LGA 1155 motherboard - NK 4.0
Great budget NK 4.0 board, similar features as the B400GA0 featured in the NAS Killer 4.0 guide.
Features LSI SAS 2008 onboard with SFF-8087 ports.
0 voters
Great board for what you get. Looks like this is one of the boards with IPMI too.
When these have the LSI onboard, what bus does it run through? IE, does it degrade PCIe performance?
Itās PCIe, and it doesnāt ādegradeā performance.
Had a question for the seller. Since thereās no I/O shield to go with it, heās offering it for $25. Negotiated the $25 pricing for this group as well. All you need to do is send Shawn a message and heāll extend the offer to you.
āYou let your group know I am game for that. have them write to me using codeword ( shenanigans for $25 ) and I will send them the same offerā
Seller is now officially offering them at $27.55
Of course use @Archangel_DTās offer above if possible.
Just FYI: my board arrived with VT-X (i.e virtualization technology) disabled in BIOS, and option to re-enable it not visible. Had to edit BIOS to re-enable it. Straightforward process.
Could you share how you did that?
Sure. You need to find two things:
Boot system to DOS, and using AFUDOS dump BIOS to the usb stick.
AFUDOS BIOS.img /O
Iād recommend dumping it multiple times, to a different filenames, just in case.

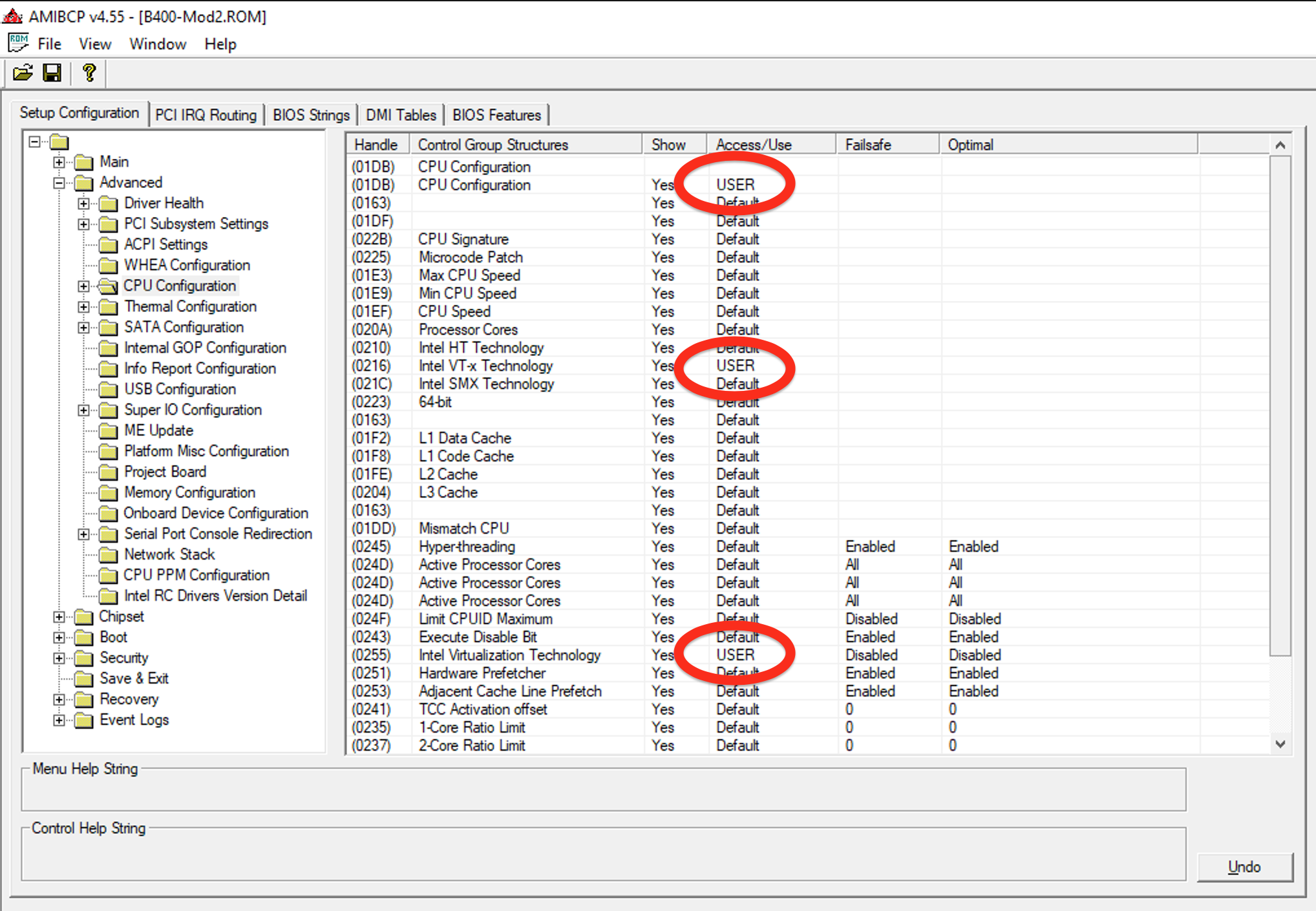

Then in Windows, launch AMIBCP and modify three settings from Default
to USER
.
After you edited file, flash it with AFUDOS
AFUDOS BIOS-mod.img
Reboot system and you should see Intel Virtualization Technology option in the BIOS. I did not try to play with other settings, but I guess setting them all to USER
will show them.
Links to the apps I wonāt be sharing, but they are easy to find online. If google does not help, try yandex
Try it on your own risk. No guarantees it will work for you. Iām not liable if something goes wrong.
Are these any different than whatās available on AMIās site?
AFUDOS from Aptio 4 package will work. (I think v4 is what I used, but donāt have my flash with me to double check).
Other utility is from the first link on this page.
Iām trying to find a PDF manual for this motherboard. I just got one but canāt figure out the pins to connect to the switches on my case. Can anybody help?

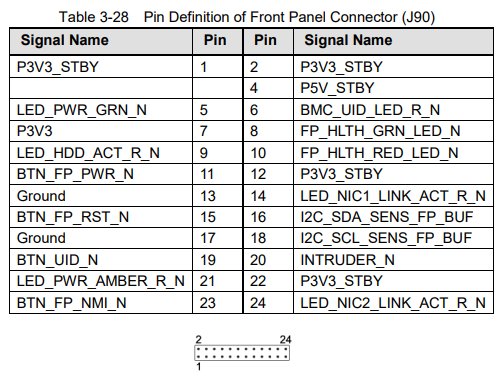

Hereās the pinout:
And hereās a link to the full manual: https://cdn.discordapp.com/attachments/572974081088028673/577954781163683900/B400.pdf
Note that the manual is quite generic, there were many iterations of this board with slightly different features, so not everything in the manual may apply to this specific board, but it should be enough to get you running.
thank you!!
How about what the LEDās on the motherboard mean? I canāt find this information in the manual anywhere. My board has 3 flashing LEDās and wonāt boot up, trying to determine whatās wrong.
If I understood the chart properly (and thereās a good chance I didnāt) then I have an extra ground wire that I donāt know what to do with. So yeah, the documentation on this board is a bitā¦interesting.

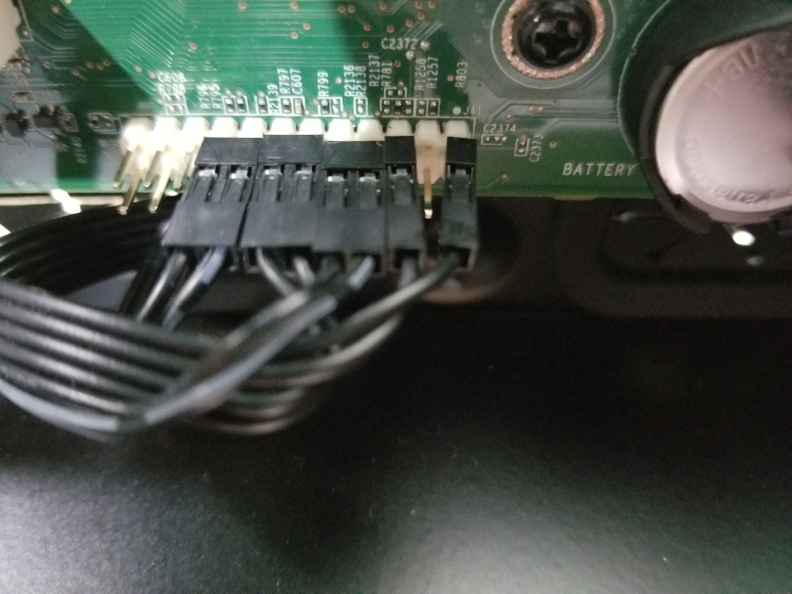

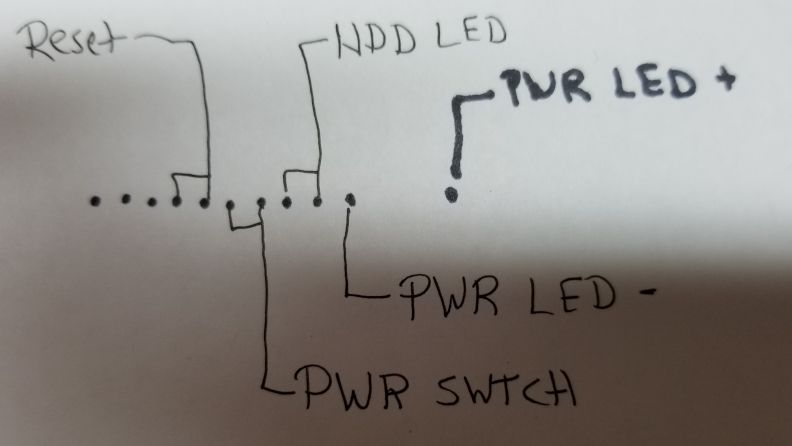

I used the exact pinout information that Mthrboard posted. I only connected power switch, reset, and hard drive light to keep things simple. Everything I have connected is connected to the top row of pins. I guess you could say the row closest to the processor. See if this image and diagram helps. Take notice of the space I left between Power LED + and Power LED -. That is the missing pin that doesnāt exist between pin 1 and 5 from the pinout table Mthrboard posted. Also, the board has 3 blinking lights when plugged in, but not powered on.
Hm, sorry I didnāt see your post - did you get i working?
