[Info] AM4 to LGA2011 (and others) square/narrow heatsink adapter brackets

Overview

The idea is that you can use basically any cooler that supports AMD socket AM4 on an Intel LGA2011 motherboard. These brackets are extremely well made, fit, and finished - not to mention, very affordable. I ordered my set on June 4th, and received them on June 19th.

LGA2011 Narrow ILM

https://rover.ebay.com/rover/1/711-53200-19255-0/1?mpre=https%3A%2F%2Fwww.ebay.com%2Fitm%2FMount-Bracket-Intel-Socket-LGA2011-Narrow-ILM-CPU-fan-cooler-heatsink-radiator%2F164260787934%3Fhash%3Ditem263eb4b6de%3Ag%3ADEEAAOSwdmlb1xkF&campid=5338535236&toolid=20008

LGA2011 Square ILM

https://rover.ebay.com/rover/1/711-53200-19255-0/1?mpre=https%3A%2F%2Fwww.ebay.com%2Fitm%2FMount-Bracket-Intel-Socket-LGA2011-Square-ILM-CPU-fan-cooler-heatsink-radiator%2F163342744579%3Fhash%3Ditem2607fc7c03%3Ag%3AhpQAAOSw8f9b1x0P&campid=5338535236&toolid=20008

LGA1366, LGA115X, and more

https://www.ebay.com/itm/cpu-heatsink-holder-bracket-LGA-775-1150-1151-1155-1156-1366-2011-AMD-AM4-intel/324206554016?hash=item4b7c376ba0:g:he8AAOSwy-le8Mod

Installing the brackets

Pictured below is the Gigabyte GA-7PESH2, a square ILM dual-socket motherboard.

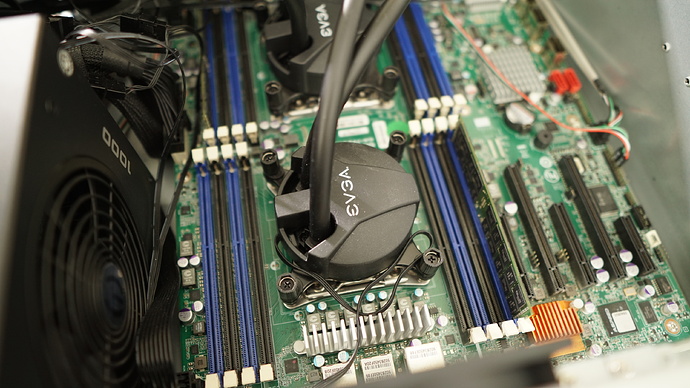

Remove your current cooling solution if you have one…

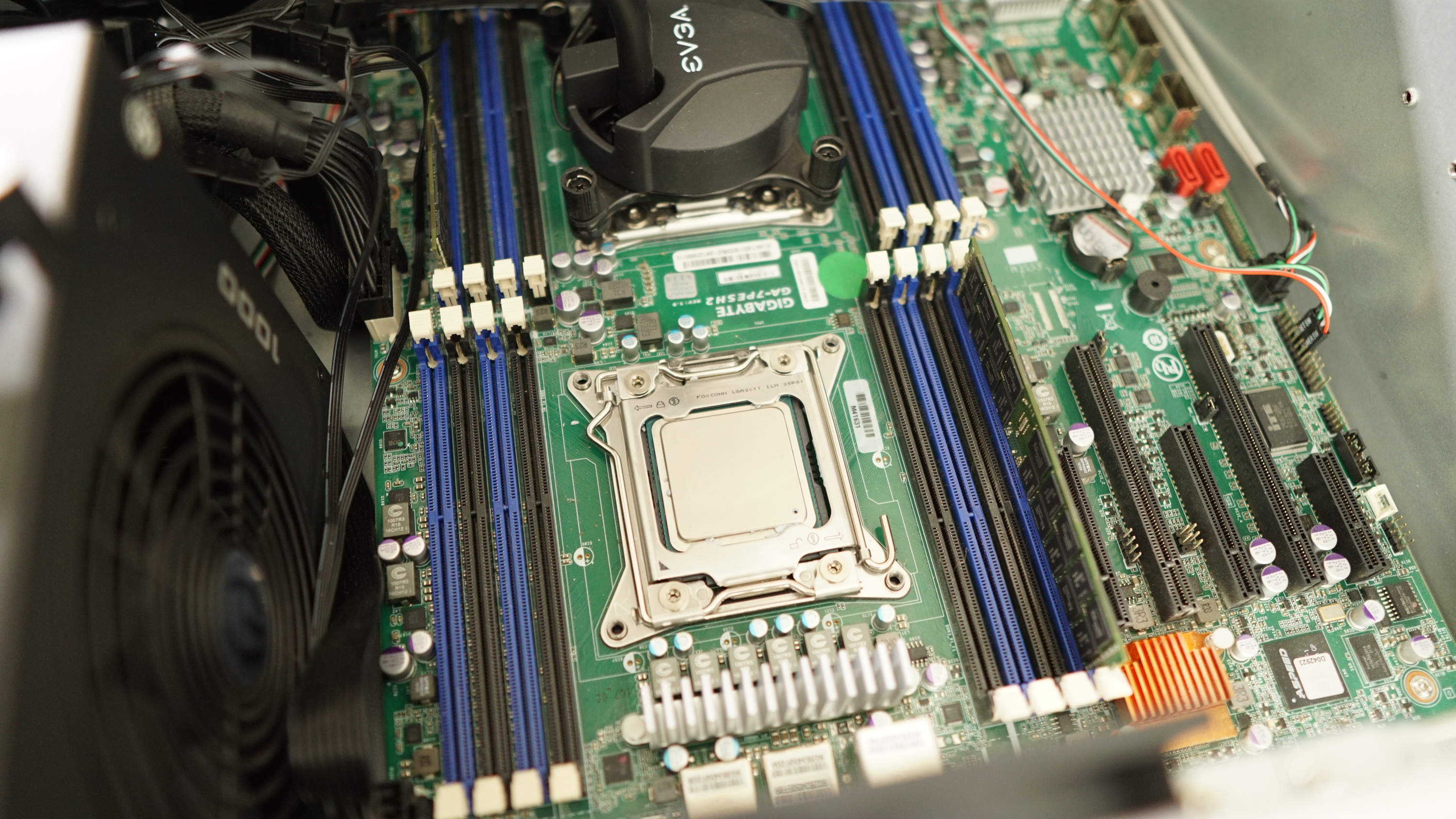

Don’t forget to clean up your CPU.

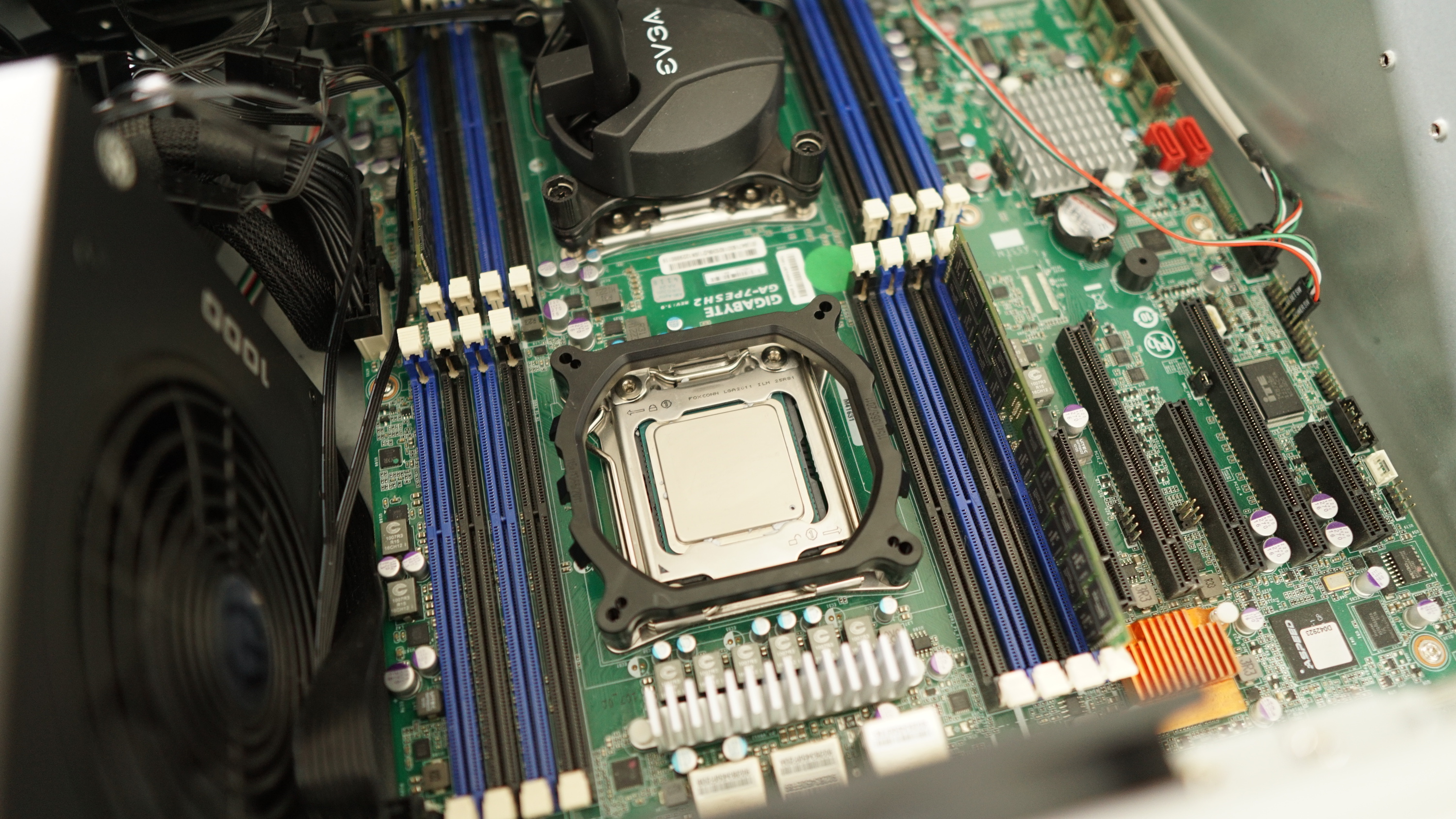

The bracket sits nicely on the motherboard mounting pegs, and doesn’t move around.
The bracket can be installed two different ways, horizontally and vertically. Careful with the heatsink mounting arm, it may interfere with your RAM slots or VRMs. Also, be aware that the orientation of this bracket will determine the direction of your heatsink fins.

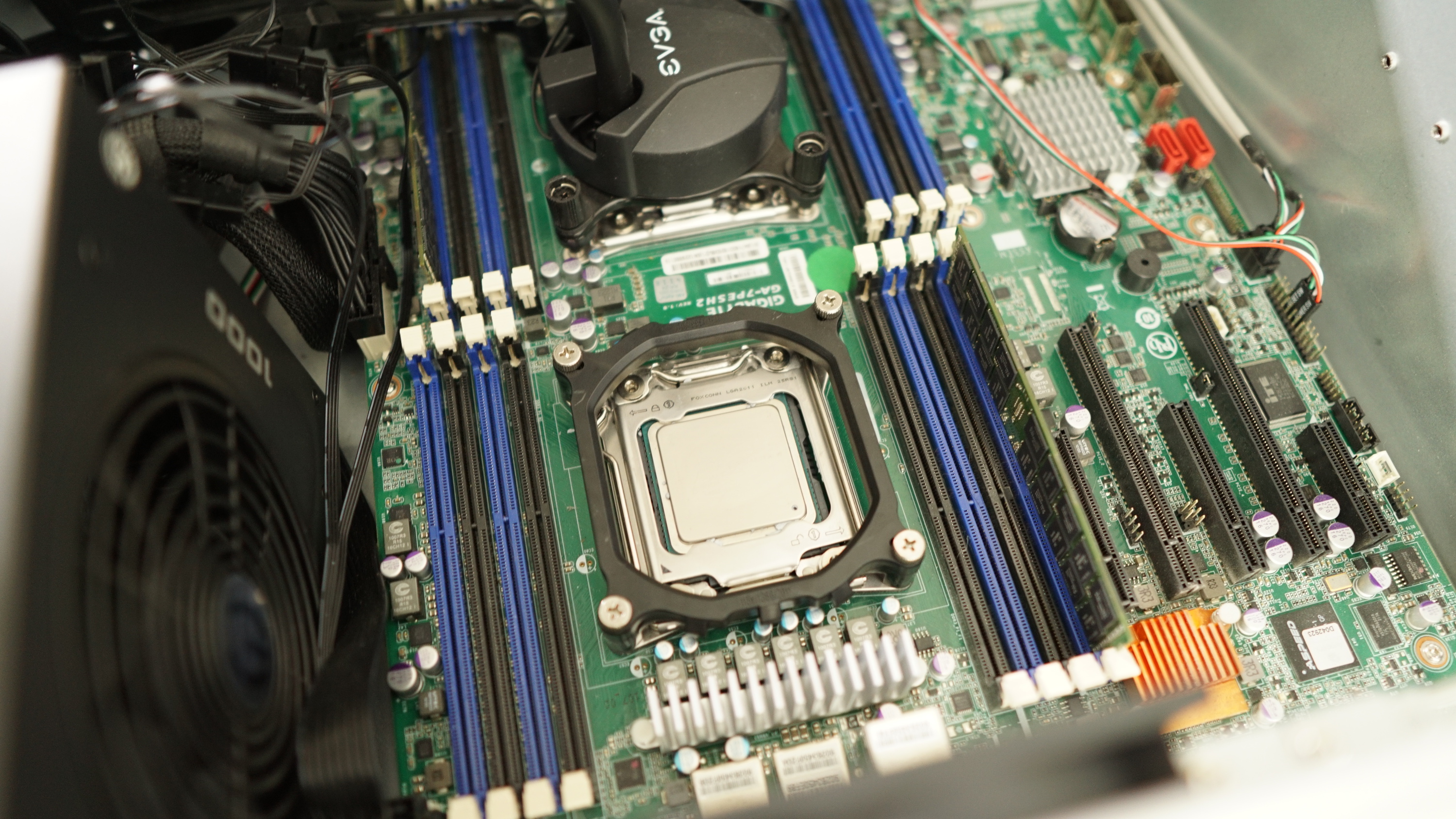

Horizontal

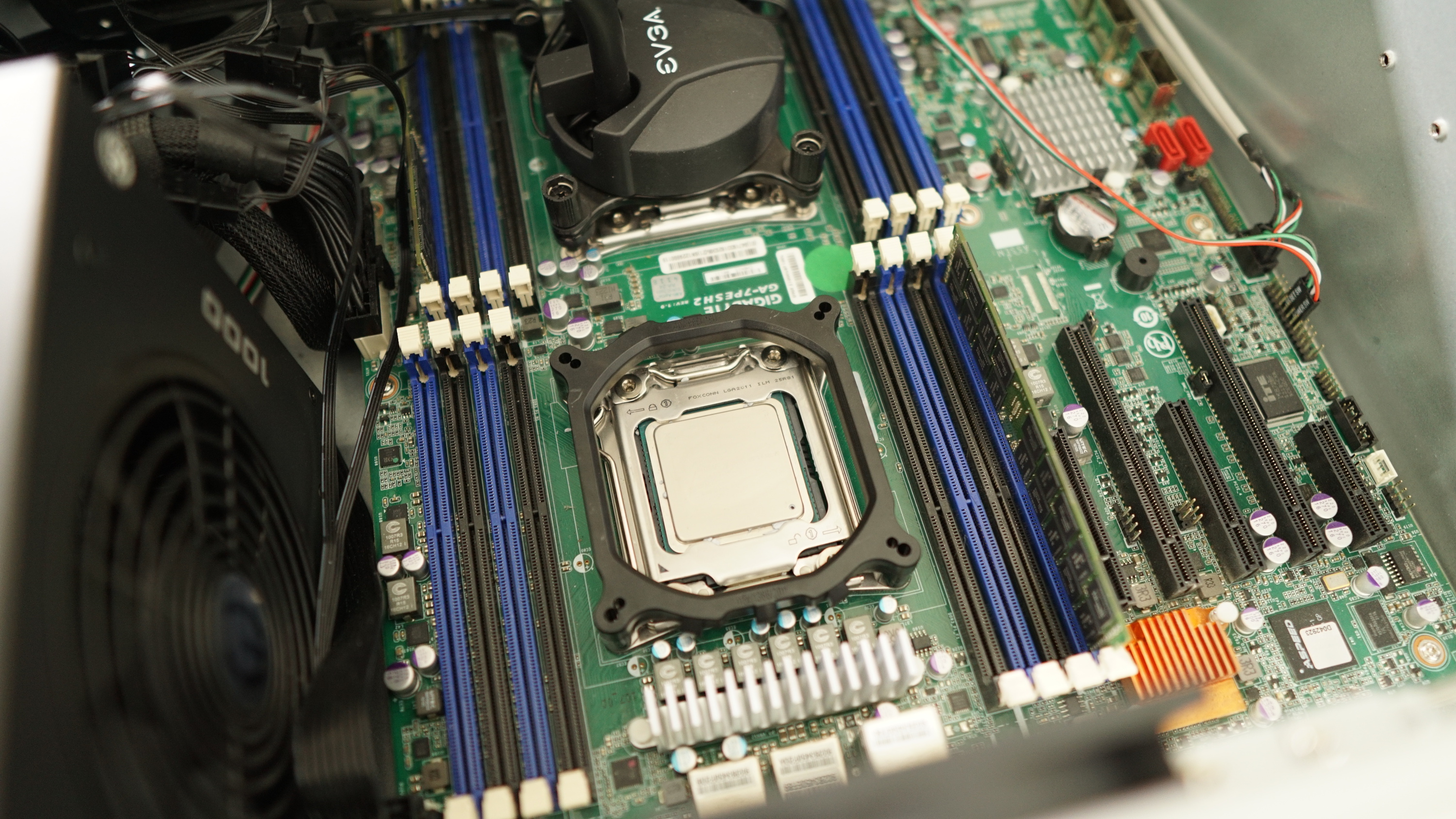

Vertical

Screw the mounting screws down evenly, and you’re ready to mount your CPU cooler.

Failed experiment with an AMD Wraith Prism

My original goal was to use an AMD Wraith Prism LED CPU cooler with these brackets. The Wraith Prism is an extremely overbuilt CPU cooler and should be able to cool 150W Xeons with ease. It’s also available on ebay for around $20-$30, making it an attractive option.

Note that the AMD Wraith Spire and Wraith Stealth do not use the same mounting system, and are not compatible with this type of mounting system.

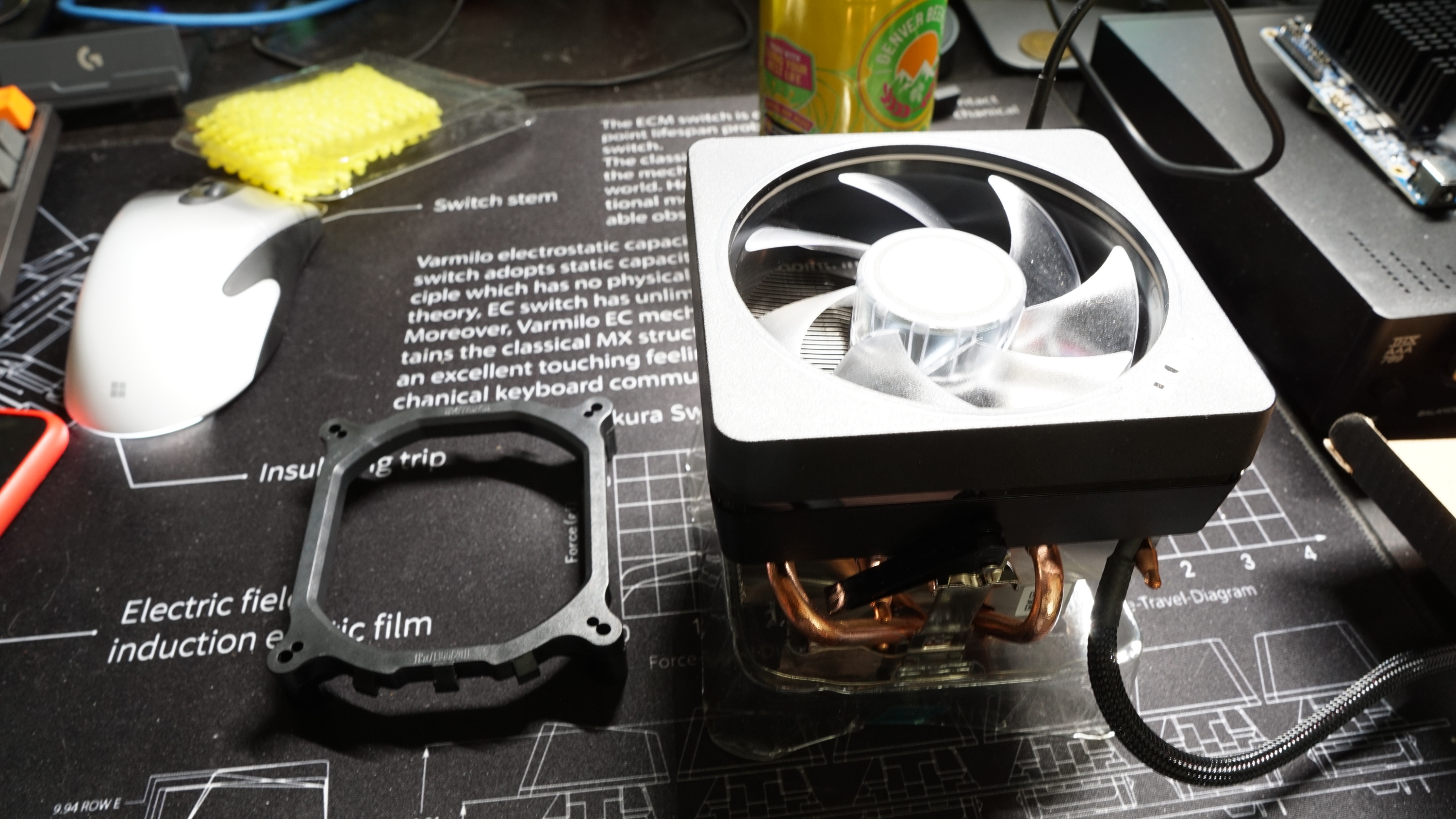

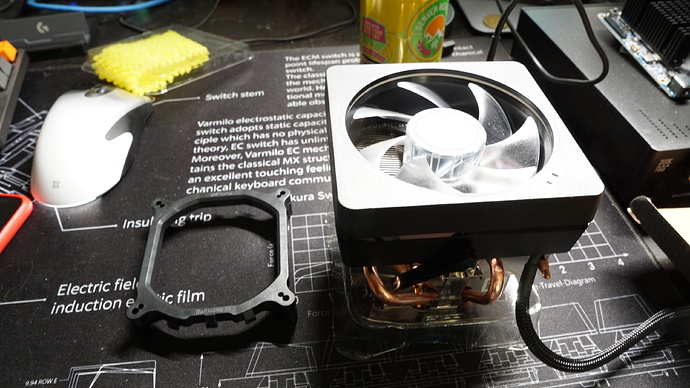

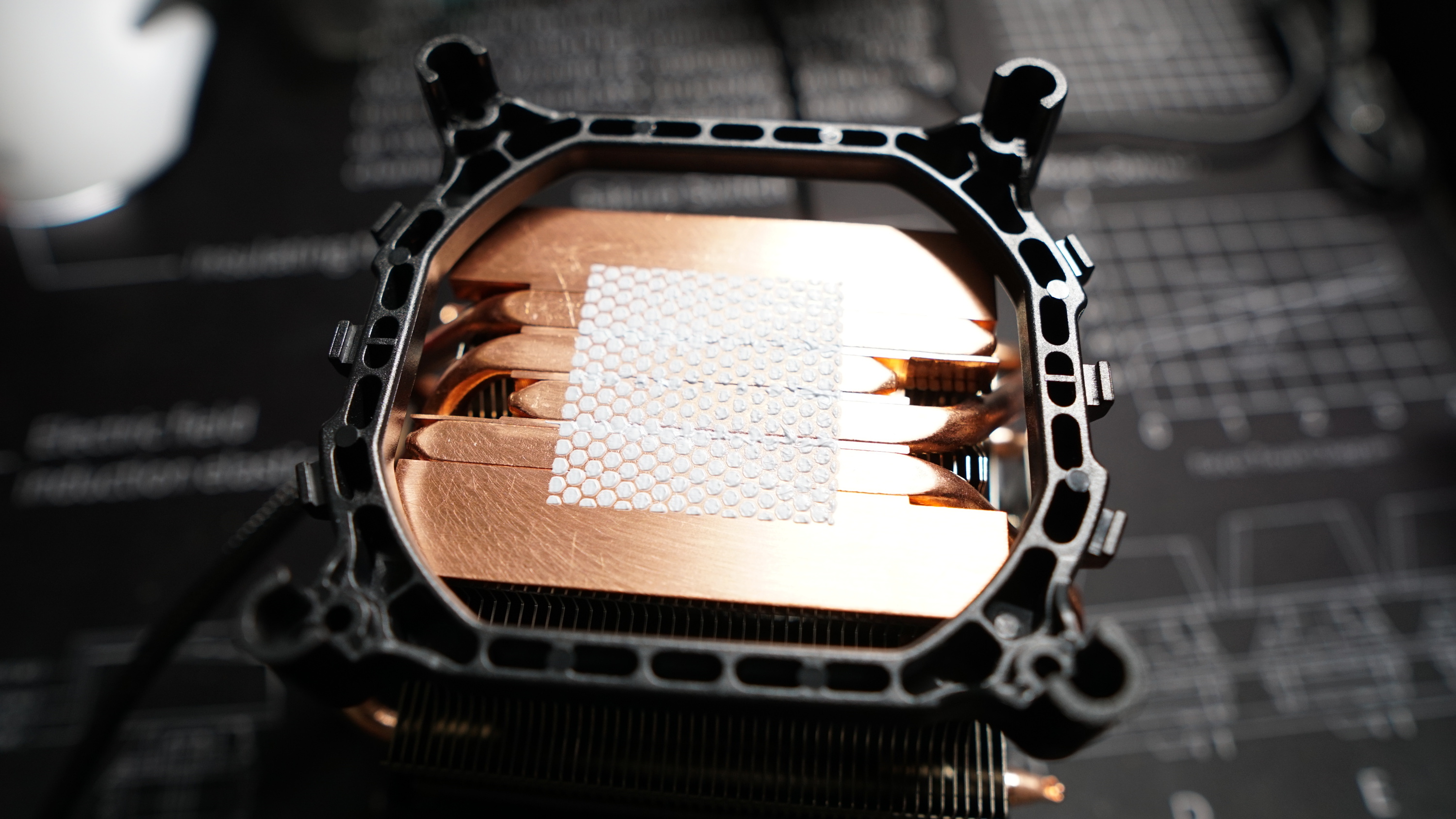

Unfortunately, the base of the Wriath Prism is massive - too large for these mounting brackets.

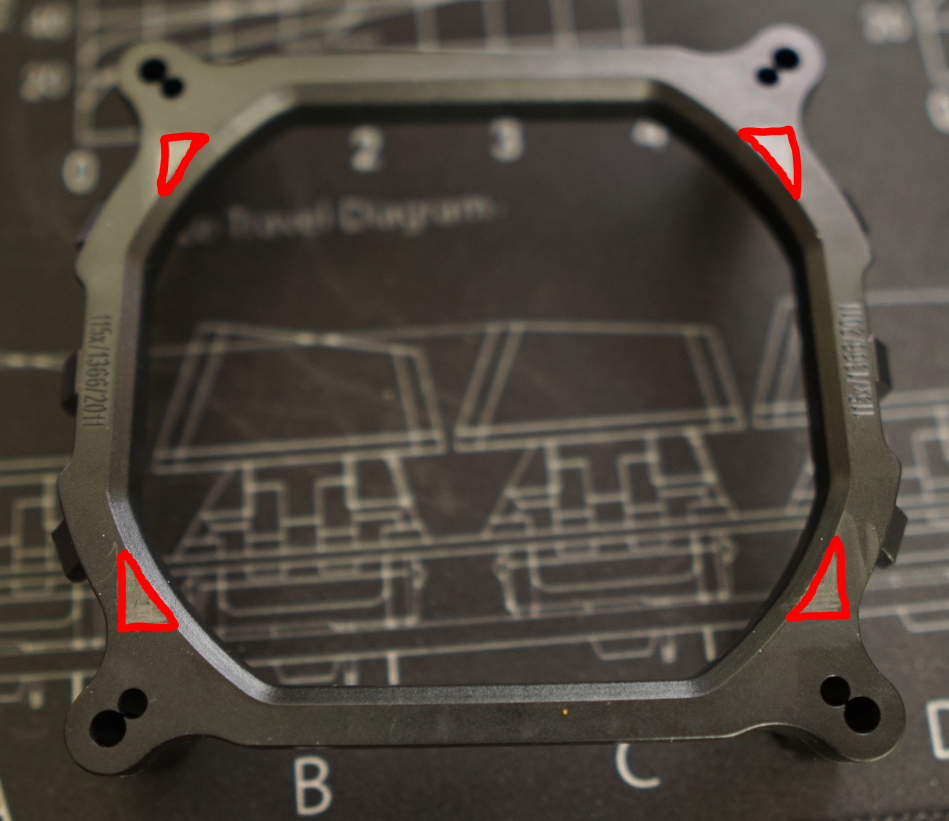

I’ve marked the bracket with a pencil where the heatsink intersects it. Due to the strength and construction of the bracket, I have a high amount of confidence it will be fine if it were filed down to fit the heatsink. However, due to time constraints, I won’t be able to test this for a while.
