Anniversary 2.0 "SNAFU "

Componant Part Name Price
Case Rosewill RSV-4015L $ 150.00
CPU(s) 2x Intel Xeon E5-2650 $ 70.00
Mobo Supermicro X9DRD-7LN4F-JBOD $ 130.00
RAM 16GB (2x8GB) DDR3 ECC REG $ 20.00
PSU EVGA 600 W1, 80+ WHITE 600W $ 32.00
Other 8 Pin to Dual 8 Pin EPS Splitter $ 8.00
Storage 3x 1TB HDD, 1x 6TB HDD, 1x 800gb F80 SSD
CPU Cooler Corsair H55 had
CPU Cooler Supermicro SNK-P0050AP4 $ 38.00
Total Spent: $ 448.00

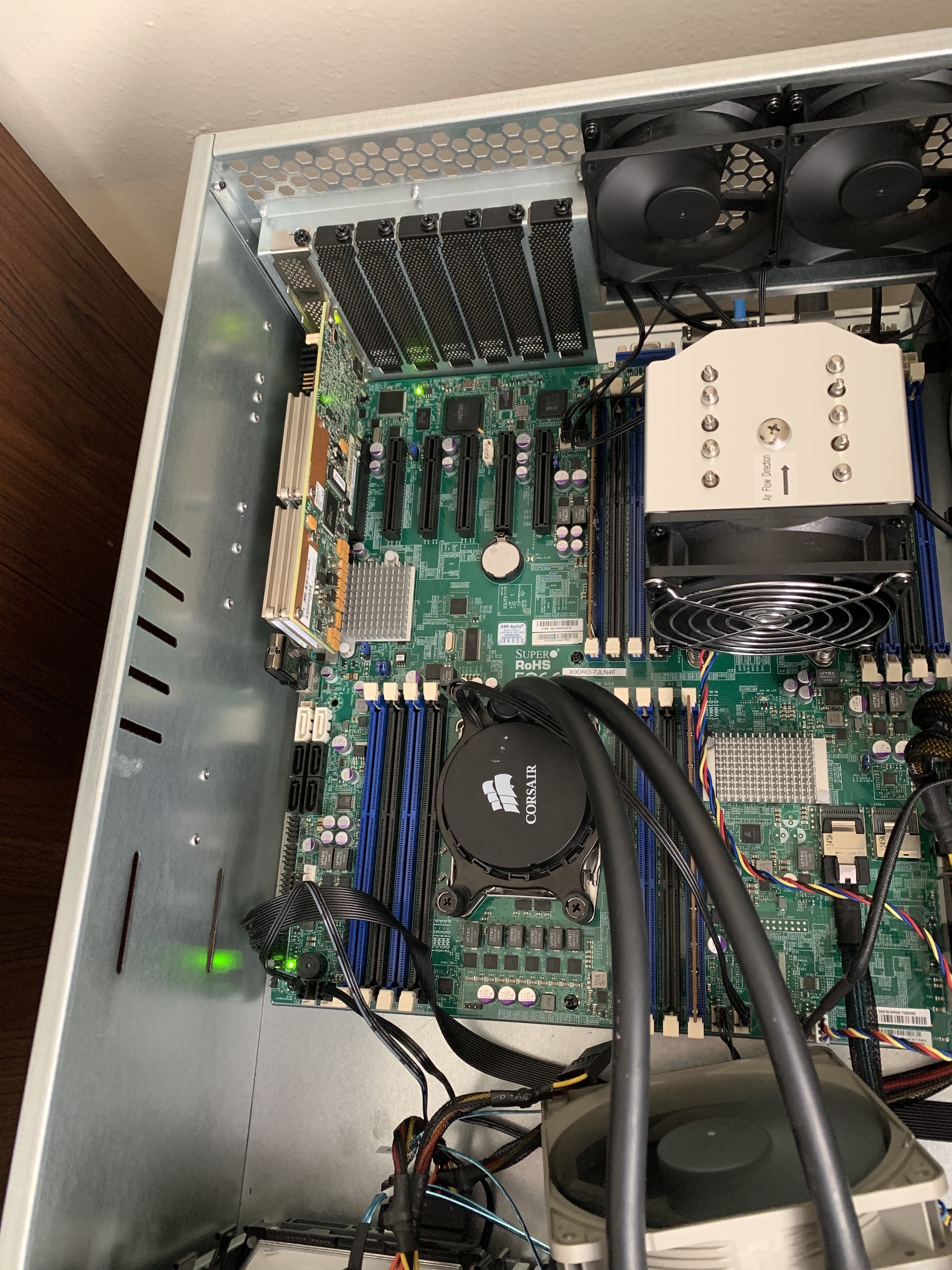

Storage came from my old server, everything else was new. Planning to add 16gb more of RAM in the near future. I thought I’d be able to fit a water cooler in this case, but the mobo is too big for the fan wall to remain so right now the radiator is just sitting in there until I can buy an air cooler to match the other CPU. Ended up with 2x v1 E5-2650s instead of the v2, but I’m happy with their performance for now until I feel like grabbing a couple of v2 chips.

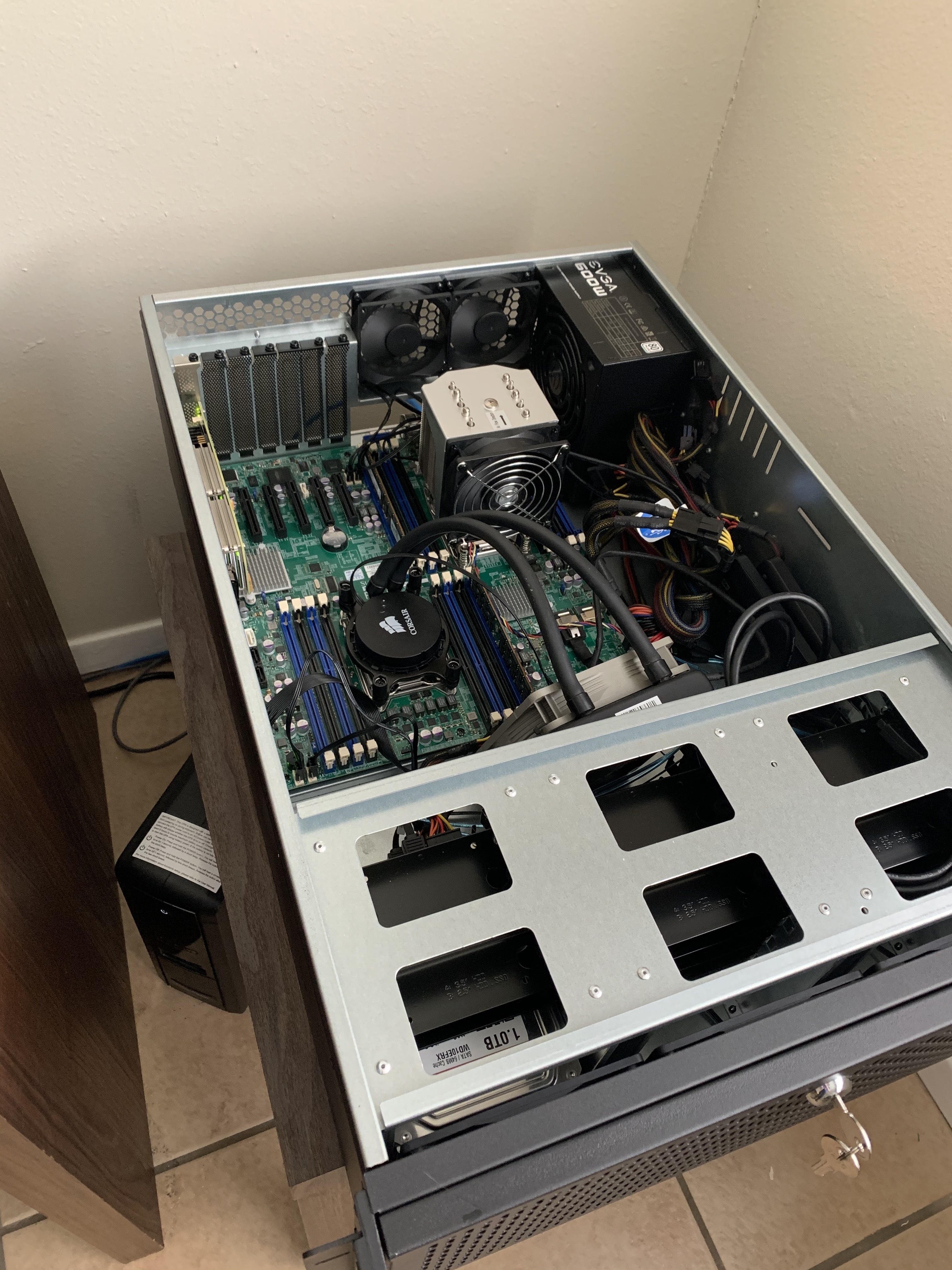

This case is Rosewill’s follow up to the L4500. The drive slots are an EXTREMELY tight squeeze, its quite difficult to put HDDs next to each other in the slots. I’d like to replace these drive cages with hot swap modules later if possible anyway, so I’m spacing my drives a part from each other for now.

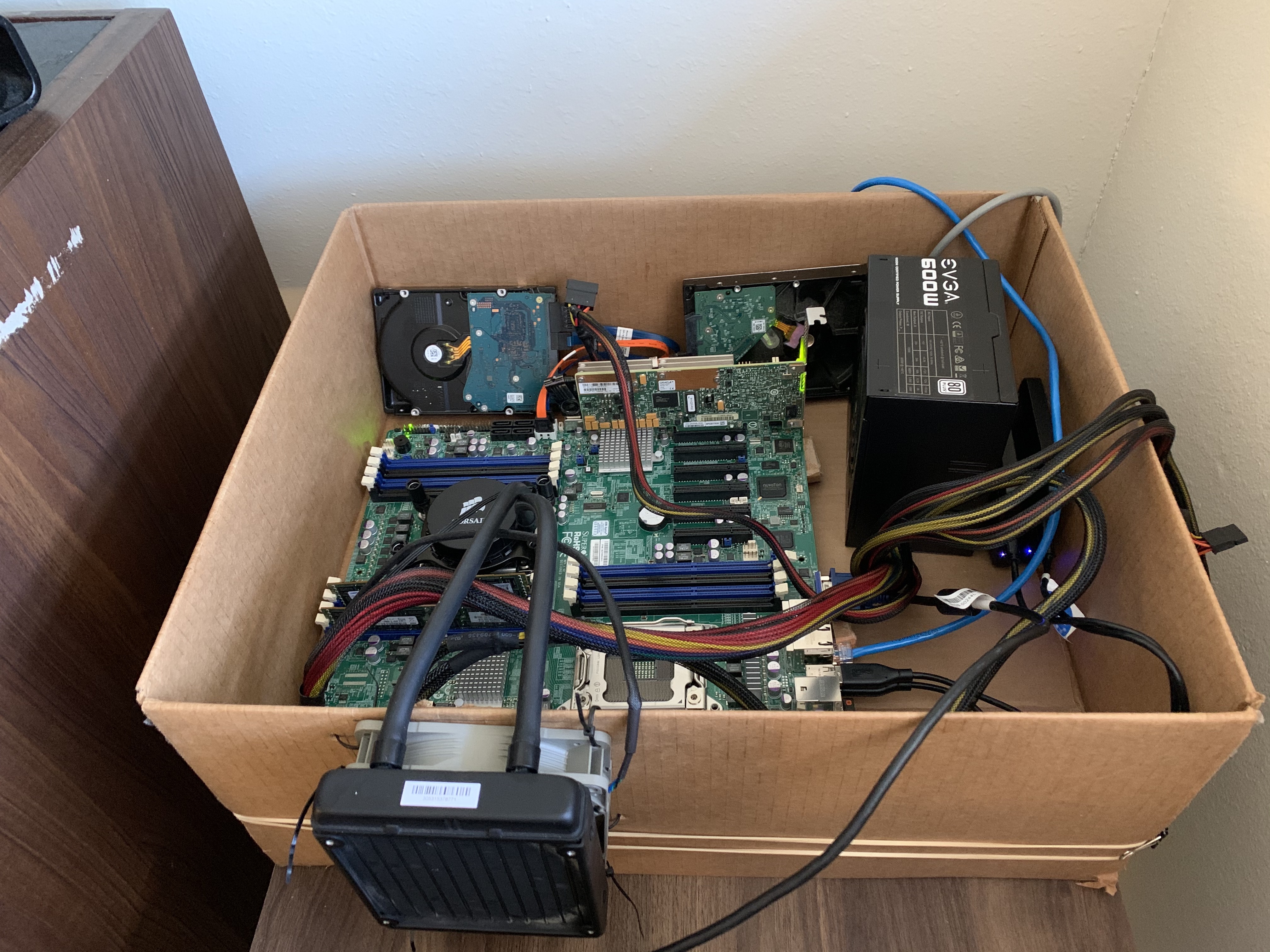

The server lived in a cardboard box for a few weeks before I had the money for a case.

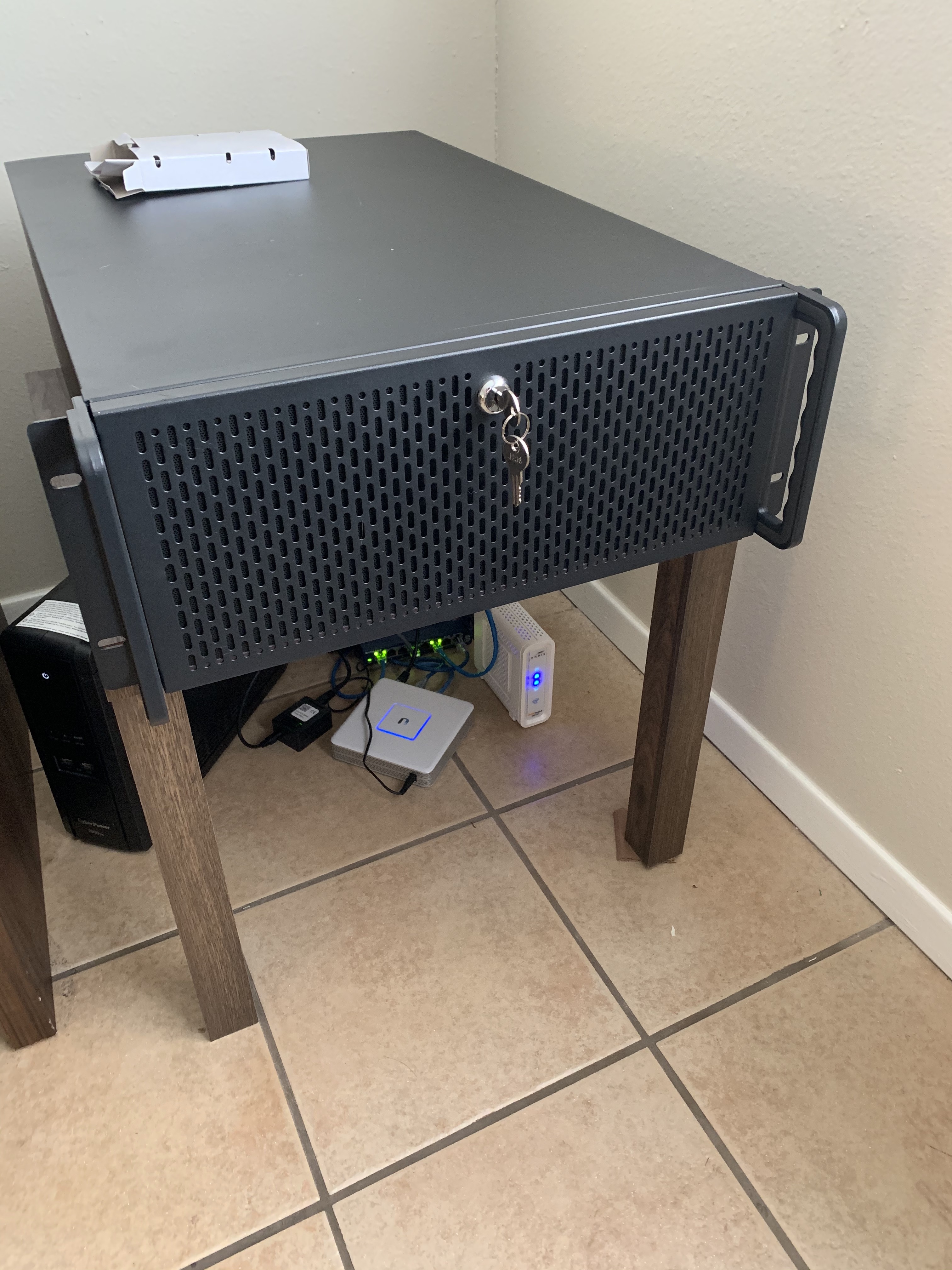

I’ll get a rack one day.


you should cover your other socket! even with a cpu cooler so you dont damage the pins accidentally.

1 Like

It is covered.

Didn’t notice it on the later pic!
